Components [08/2020 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
| *1 | BATTERY SERVICE HOLE COVER | *2 | SERVICE PLUG GRIP |
Fig 2: HV Battery (For Lithium-Ion Battery) Replacement Components With Torque Specifications (2 Of 4)
| *1 | CONNECTOR COVER ASSEMBLY | *2 | ENGINE ROOM MAIN WIRE |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |
Fig 3: HV Battery (For Lithium-Ion Battery) Replacement Components With Torque Specifications (3 Of 4)

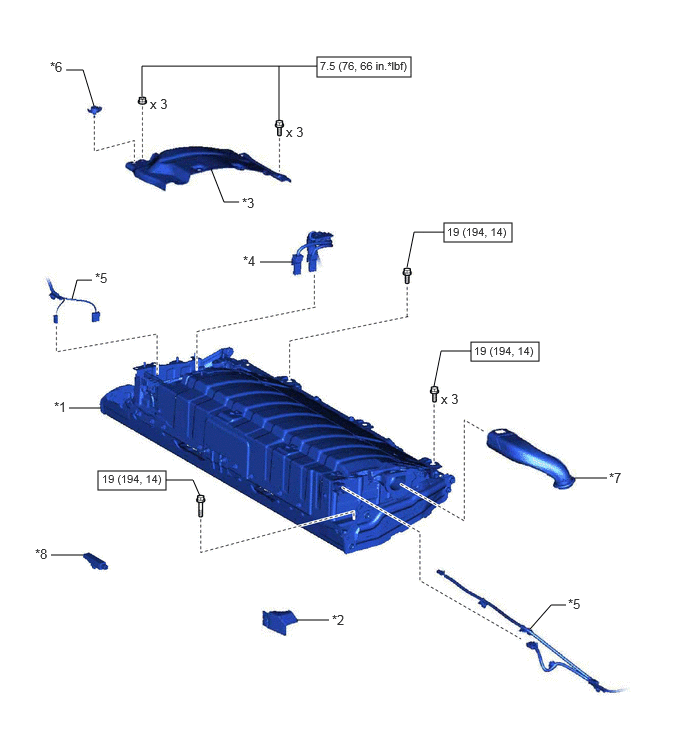

| *1 | HV BATTERY | *2 | NO. 4 HV BATTERY PROTECTOR |
| *3 | NO. 1 HV BATTERY COVER PANEL RH | *4 | HV FLOOR UNDER WIRE |
| *5 | FLOOR WIRE | *6 | BATTERY COVER LOCK STRIKER |
| *7 | HYBRID BATTERY HOSE ASSEMBLY | *8 | NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
Fig 4: HV Battery (For Lithium-Ion Battery) Replacement Components With Torque Specifications (4 Of 4)

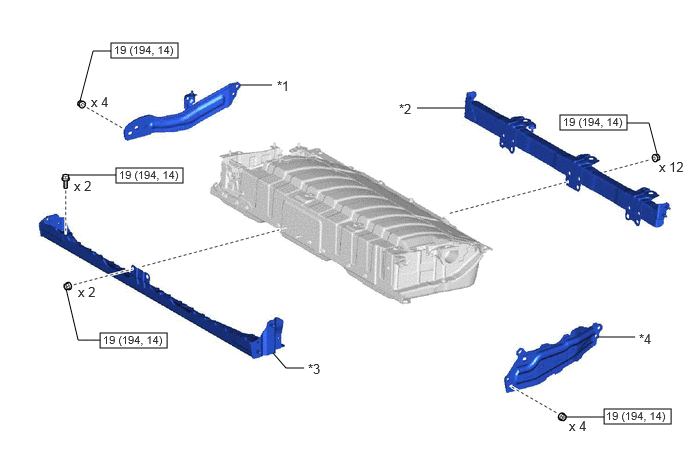

| *1 | NO. 3 HV BATTERY SHIELD SUB-ASSEMBLY | *2 | NO. 5 HV BATTERY END PLATE SUB-ASSEMBLY |
| *3 | NO. 4 HV BATTERY END PLATE SUB-ASSEMBLY | *4 | NO. 4 HV BATTERY SHIELD SUB-ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
