Components [08/2020 - ]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Frame Wire Replacement Components [08/2020 - ] (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

BATTERY SERVICE HOLE COVER

SERVICE PLUG GRIP

Fig 2: Frame Wire Replacement Components With Torque Specifications [08/2020 - ] (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CONNECTOR COVER ASSEMBLY	*2	ENGINE ROOM MAIN WIRE
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque

Fig 3: Frame Wire Replacement Components With Torque Specifications [08/2020 - ] (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	REAR UNDER COVER	*2	REAR UNDER SIDE COVER LH
*3	REAR UNDER SIDE COVER RH	*4	REAR SEAT CUSHION LEG SUB-ASSEMBLY
*5	REAR SEAT CUSHION ASSEMBLY	*6	REAR DOOR SCUFF PLATE LH
*7	REAR DOOR SCUFF PLATE RH	*8	REAR SEAT CUSHION LOCK HOOK
*9	REAR CENTER SEAT OUTER BELT ASSEMBLY	*10	REAR SEAT INNER BELT ASSEMBLY RH
*11	WASHER	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	•	Non-reusable part

Fig 4: Frame Wire Replacement Components With Torque Specifications [08/2020 - ] (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NO. 1 FLOOR UNDER COVER	*2	CENTER NO. 2 FLOOR HEAT INSULATOR
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

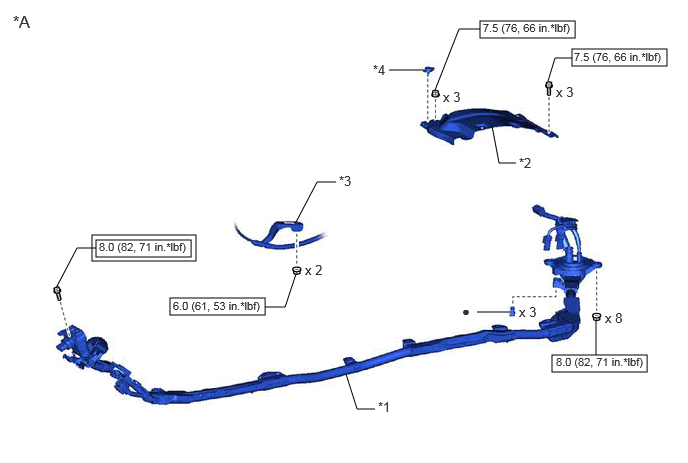

Fig 5: Frame Wire Replacement Components With Torque Specifications [08/2020 - ] (5 Of 6)

*A	for NICKEL METAL HYDRIDE BATTERY	-	-
*1	HV FLOOR UNDER WIRE	*2	NO. 1 HV BATTERY COVER PANEL RH
*3	TRANSMISSION CONTROL CABLE ASSEMBLY	*4	BATTERY COVER LOCK STRIKER
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
•	Non-reusable part	-	-

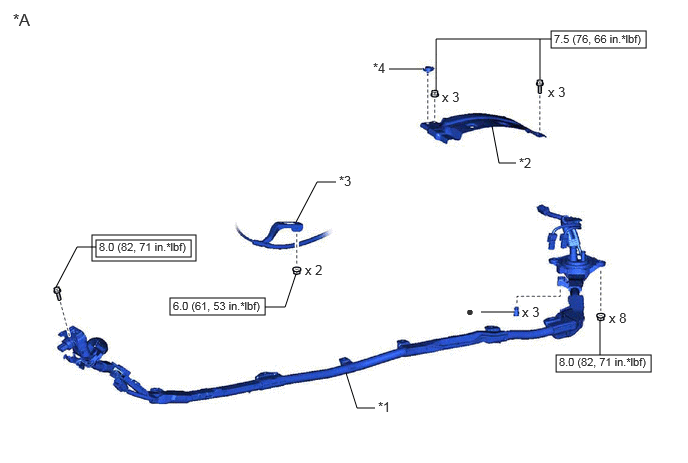

Fig 6: Frame Wire Replacement Components With Torque Specifications [08/2020 - ] (6 Of 6)

*A	for LITHIUM-ION BATTERY	-	-
*1	HV FLOOR UNDER WIRE	*2	NO. 1 HV BATTERY COVER PANEL RH
*3	TRANSMISSION CONTROL CABLE ASSEMBLY	*4	BATTERY COVER LOCK STRIKER
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
•	Non-reusable part	-	-
