Installation [08/2020 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL BATTERY ECU ASSEMBLY
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    1. Install the battery ECU assembly to the HV battery with the 3 nuts.

      Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

      NOTE:
      • Check color of the label.
        GTY756931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Black Label
      • If the battery ECU assembly has been struck or dropped, replace it.

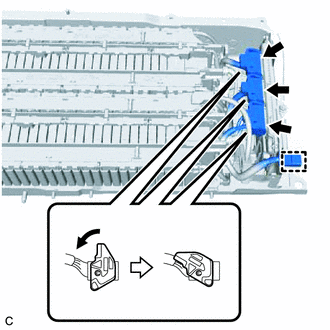

    2. Connect the 3 battery ECU assembly connectors and move the lock lever to lock them.
      NOTE:

      Make sure that the connectors are connected securely.

      GTY761466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the clamp.
  2. INSTALL NO. 1 HV BATTERY HOSE
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    1. Engage the 2 claws to install the No. 1 HV battery hose to the HV battery.
    2. Engage the 2 clips.
  3. INSTALL UPPER HV BATTERY COVER SUB-ASSEMBLY
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    1. Install the upper HV battery cover sub-assembly to the HV battery with the 5 bolts and 7 nuts.

      Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

  4. CONNECT FLOOR WIRE

    See step  7

  5. INSTALL NO. 4 HV BATTERY PROTECTOR

    See step  8

  6. CONNECT FLOOR WIRE

    See step  7

  7. INSTALL HYBRID BATTERY HOSE ASSEMBLY

    See step  11

  8. INSTALL NO. 1 HV BATTERY COVER PANEL RH

    See step  14

  9. INSTALL REAR SEAT CUSHION LEG SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  10. INSTALL REAR UNDER COVER

    Refer to PROCEDURE - Step 5

  11. INSTALL REAR UNDER SIDE COVER LH

    Refer to PROCEDURE - Step 6

  12. INSTALL REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 29

  13. INSTALL REAR UNDER SIDE COVER RH

    Refer to PROCEDURE - Step 8

  14. INSTALL REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  15. INSTALL NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY

    Refer to INSTALLATION [06/2018 - ]

  16. INSTALL SERVICE PLUG GRIP

    Refer to INSTALLATION [06/2018 - ]

  17. PERFORM INITIALIZATION

    Refer to INITIALIZATION [08/2020 - 08/2021] , or refer to INITIALIZATION [08/2021 - 09/2022] , or refer to INITIALIZATION [09/2022 - ]
