Components [06/2018 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |

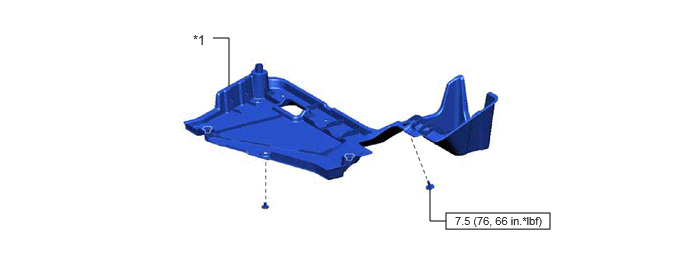

NO. 2 FLOOR UNDER COVER |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |

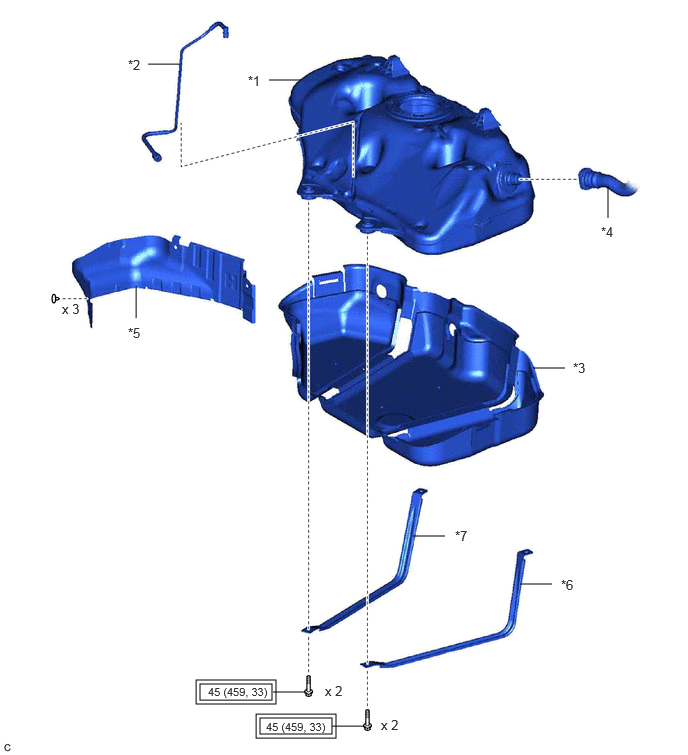

FUEL TANK ASSEMBLY |
*2 |
FUEL TANK MAIN TUBE SUB-ASSEMBLY |
| *3 |
NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY |
*4 |
FUEL TANK TO FILLER PIPE HOSE |
| *5 |
NO. 1 FUEL TANK PROTECTOR |
*6 |
NO. 1 FUEL TANK BAND SUB-ASSEMBLY LH |
| *7 |
NO. 1 FUEL TANK BAND SUB-ASSEMBLY RH |
- |
- |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
- |
- |
