REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY
Refer to REMOVAL [06/2018 - 08/2021]

REMOVE FUEL SENDER GAUGE ASSEMBLY

for Type A:

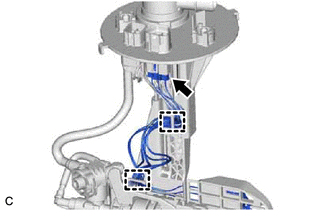

Disconnect the fuel sender gauge assembly connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disengage the 2 clamps to disconnect the wire harness from the fuel suction tube with pump and gauge assembly.
NOTE:
- Do not damage the wire harness.
- When disengaging each wire harness from the clamp, disengage one wire at a time.

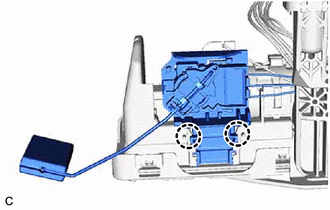

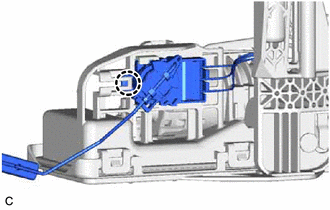

Disengage the claw to remove the fuel sender gauge assembly from the fuel suction tube with pump and gauge assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Be careful not to bend the arm of the fuel sender gauge assembly.

for Type B:

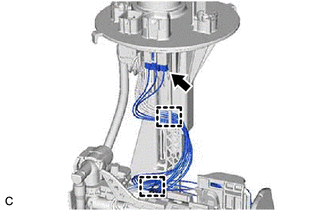

Disconnect the fuel sender gauge assembly connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disengage the 2 clamps to disconnect the wire harness from the fuel suction tube with pump and gauge assembly.
NOTE:
- Do not damage the wire harness.
- When disengaging each wire harness from the clamp, disengage one wire at a time.

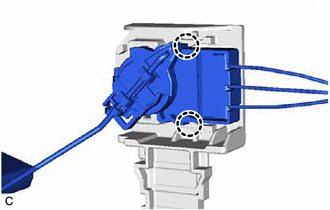

Disengage the 2 claws to remove the fuel gauge bracket with fuel sender gauge assembly from the fuel suction tube with pump and gauge assembly.

NOTE:

Be careful not to bend the arm of the fuel sender gauge assembly.

Disengage the 2 claws to remove the fuel sender gauge assembly from the fuel gauge bracket.
