Components [06/2018 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

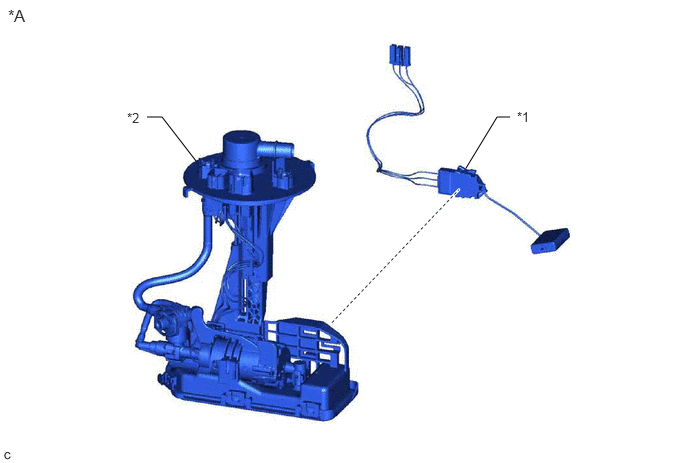

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *A |
for Type A |
- |
- |
| *1 |
FUEL SENDER GAUGE ASSEMBLY |
*2 |
FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY |

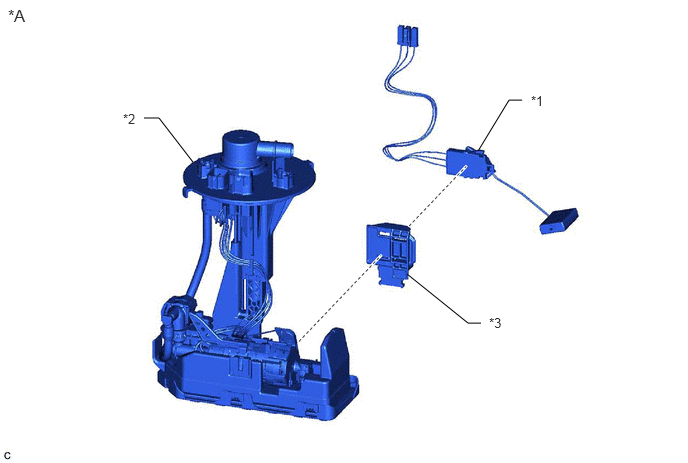

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *A |
for Type B |
- |
- |
| *1 |
FUEL SENDER GAUGE ASSEMBLY |
*2 |
FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY |
| *3 |
FUEL GAUGE BRACKET |
- |
- |
