Disassembly [06/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FUEL SENDER GAUGE ASSEMBLY

    See step  [06/2018 - 08/2021], or see step  [08/2021 - 09/2022], or see step  [09/2022 - ]

  2. REMOVE FUEL PUMP
    1. for Type A:

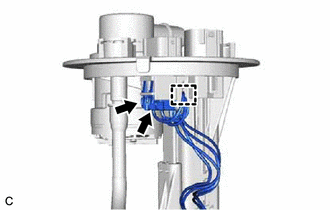

      1. Disengage the clamp to disconnect the fuel pump harness from the fuel suction plate sub-assembly.
        GTY763249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:
        • Do not damage the wire harness.
        • When disengaging each wire harness from the clamp, disengage one wire at a time.
      2. Disconnect the 2 fuel pump harness connectors.

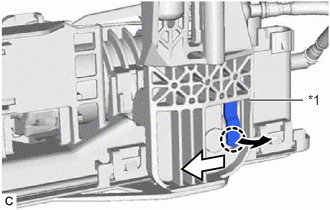

      3. Disengage the claw and slide the fuel suction plate sub-assembly and then separate it from the fuel sub-tank sub-assembly.
        GTY749595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *1 Fuel Suction Plate Sub-assembly
        Pull
        Slide

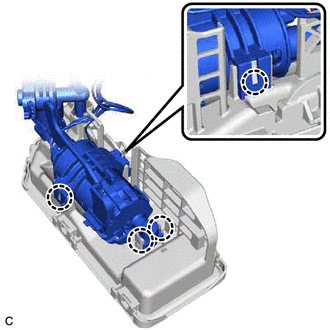

      4. Disengage the 4 claws and remove the fuel suction plate sub-assembly from the fuel sub-tank sub-assembly.
        GTY763254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

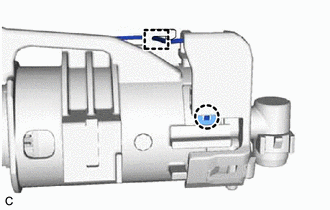

      5. Disengage the claw and clamp, and disconnect the fuel pump harness.
        GTY763252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

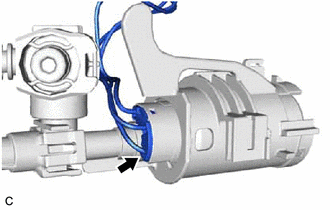

      6. Disconnect the fuel pump harness connector.
        GTY763243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

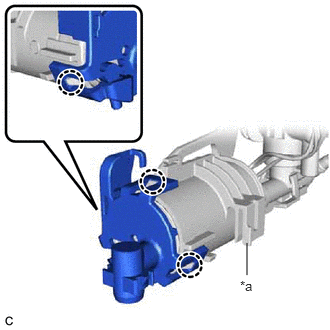

      7. Disengage the 3 claws and remove the No. 2 fuel suction support from the fuel tube supporter.
        GTY750569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Fuel Tube Supporter

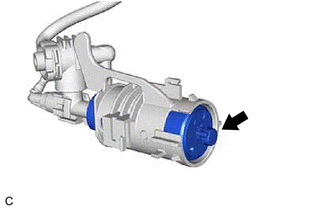

      8. Remove the fuel pump from the fuel tube supporter.
        GTY773618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      9. Remove the O-ring and fuel pump spacer from the fuel pump.
        GTY753873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *1 O-ring
        *2 Fuel Pump Spacer
    2. for Type B:

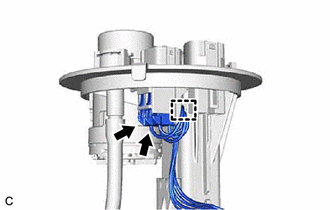

      1. Disengage the clamp to disconnect the fuel pump harness from the fuel suction plate sub-assembly.
        GTY948129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE:
        • Do not damage the wire harness.
        • When disengaging each wire harness from the clamp, disengage one wire at a time.
      2. Disconnect the 2 fuel pump harness connectors.

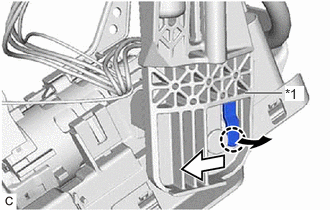

      3. Disengage the claw and slide the fuel suction plate sub-assembly and then separate it from the fuel sub-tank sub-assembly.
        GTY947829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *1 Fuel Suction Plate Sub-assembly
        Pull
        Slide

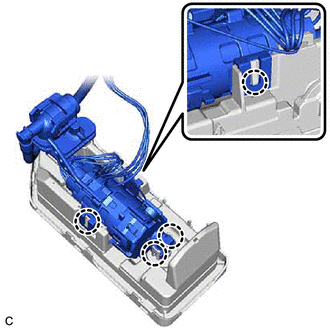

      4. Disengage the 4 claws and remove the fuel suction plate sub-assembly from the fuel sub-tank sub-assembly.
        GTY947258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

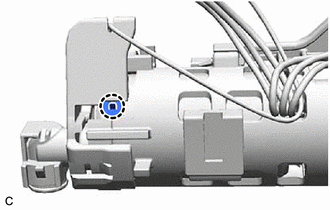

      5. Disengage the claw and disconnect the fuel pump harness.
        GTY948117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

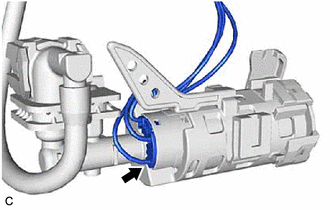

      6. Disconnect the fuel pump harness connector.
        GTY948120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

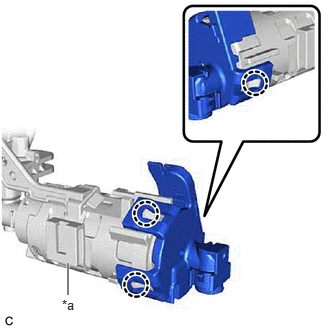

      7. Disengage the 3 claws and remove the No. 2 fuel suction support from the fuel tube supporter.
        GTY947780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Fuel Tube Supporter

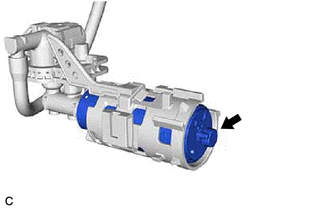

      8. Remove the fuel pump from the fuel tube supporter.
        GTY948175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      9. Remove the O-ring and fuel pump spacer from the fuel pump.
        GTY753873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *1 O-ring
        *2 Fuel Pump Spacer
