Components [06/2018 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

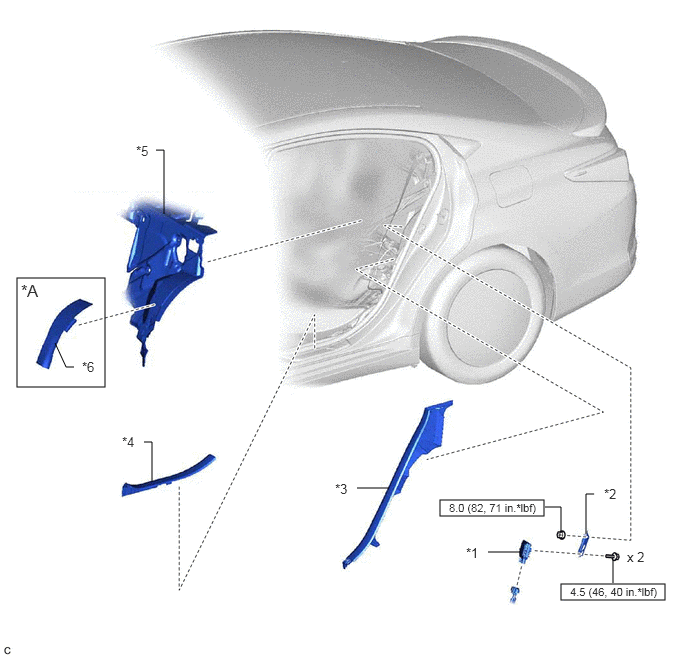

| *A | w/ Silencer Sheet | - | - |
| *1 | FUEL PUMP CONTROL ECU | *2 | FUEL PUMP CONTROL ECU BRACKET |
| *3 | REAR SEAT SIDE GARNISH LH | *4 | REAR DOOR SCUFF PLATE LH |
| *5 | ROOM PARTITION PANEL INSULATOR | *6 | NO. 2 ROOM PARTITION PANEL SILENCER SHEET |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
