Components [06/2018 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

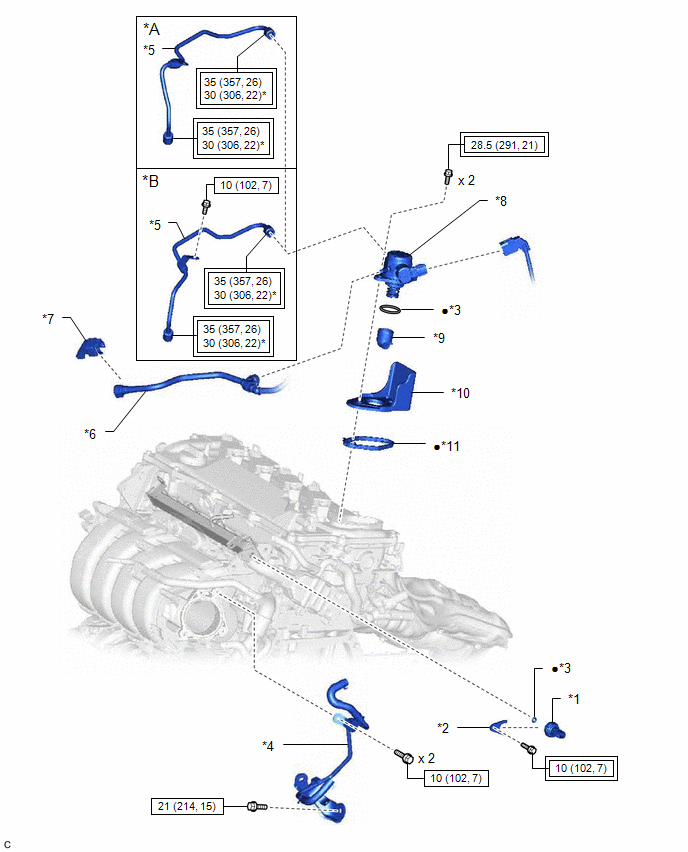

| *A | for EGR Valve Bracket Connection Type | *B | for Cylinder Head Cover Sub-assembly Connection Type |
| *1 | NO. 2 FUEL PRESSURE SENSOR | *2 | NO. 2 FUEL PRESSURE SENSOR HOLDER |
| *3 | O-RING | *4 | NO. 2 WATER BY-PASS PIPE |
| *5 | NO. 1 FUEL PIPE SUB-ASSEMBLY | *6 | FUEL TUBE SUB-ASSEMBLY |
| *7 | FUEL PIPE CLAMP | *8 | FUEL PUMP ASSEMBLY |
| *9 | FUEL PUMP LIFTER ASSEMBLY | *10 | FUEL PUMP FLANGE |
| *11 | FUEL PUMP SPACER GASKET | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque | ||
| * | For use with a union nut wrench | • | Non-reusable part |
