Removal [08/2021 - 09/2022]: Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
- PRECAUTION NOTE:
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
- DISCHARGE FUEL SYSTEM PRESSURE
Refer to PRECAUTION [08/2020 - ]
- DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to PROCEDURE - Step 1
- REMOVE INTAKE MANIFOLD
Refer to REMOVAL [08/2021 - ]
- REMOVE FUEL PRESSURE SENSOR

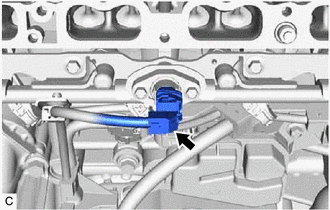

- Disconnect the fuel pressure sensor connector.

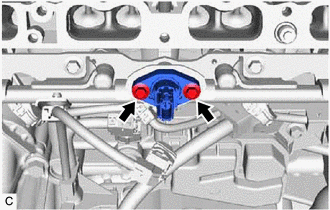

- Using an 8 mm socket wrench, remove the 2 bolts, fuel pressure sensor and No. 1 fuel pressure sensor holder from the fuel delivery pipe.NOTE:
- Pull and remove the fuel pressure sensor in a straight line to avoid damaging the seal surface of the fuel delivery pipe O-ring.
- After removing the fuel pressure sensor, remove any O-ring and fuel injector back-up rings remaining on the fuel delivery pipe side.
- Disconnect the fuel pressure sensor connector.
