System Diagram [06/2018 - 07/2019]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

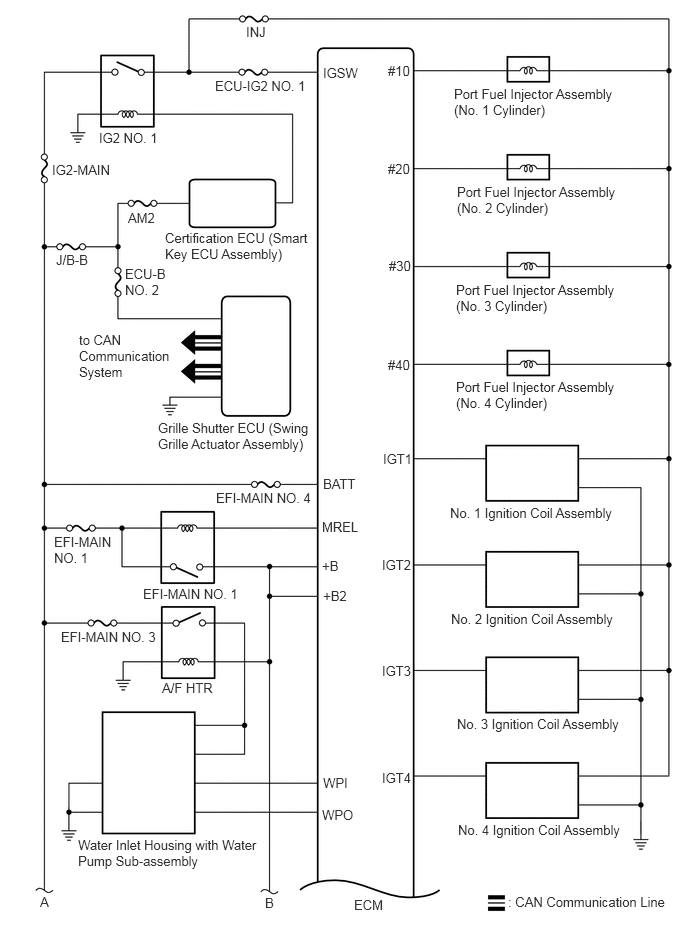

GTY801364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

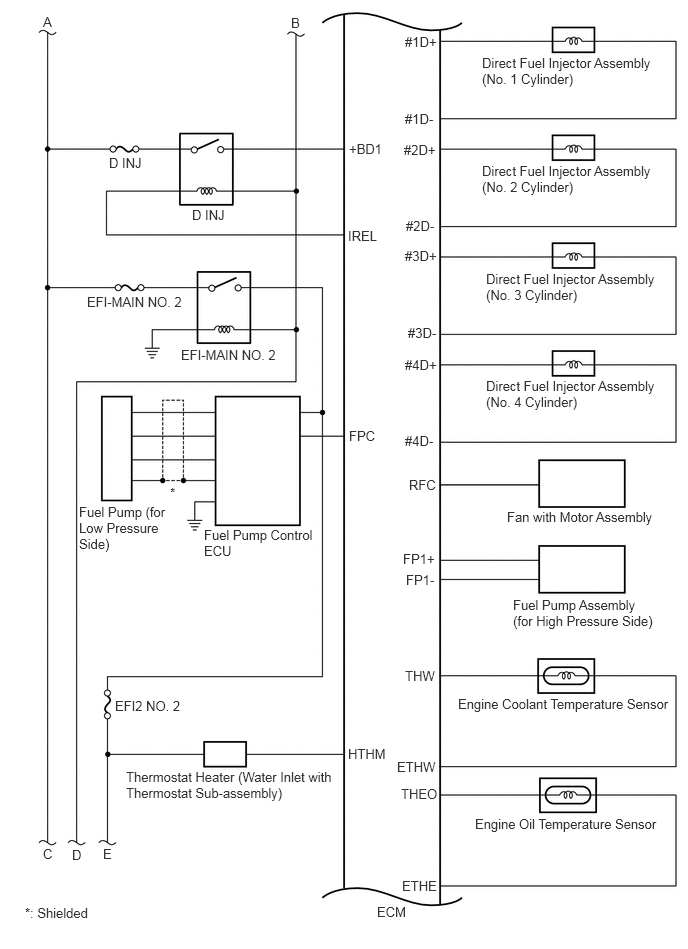

GTY810845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

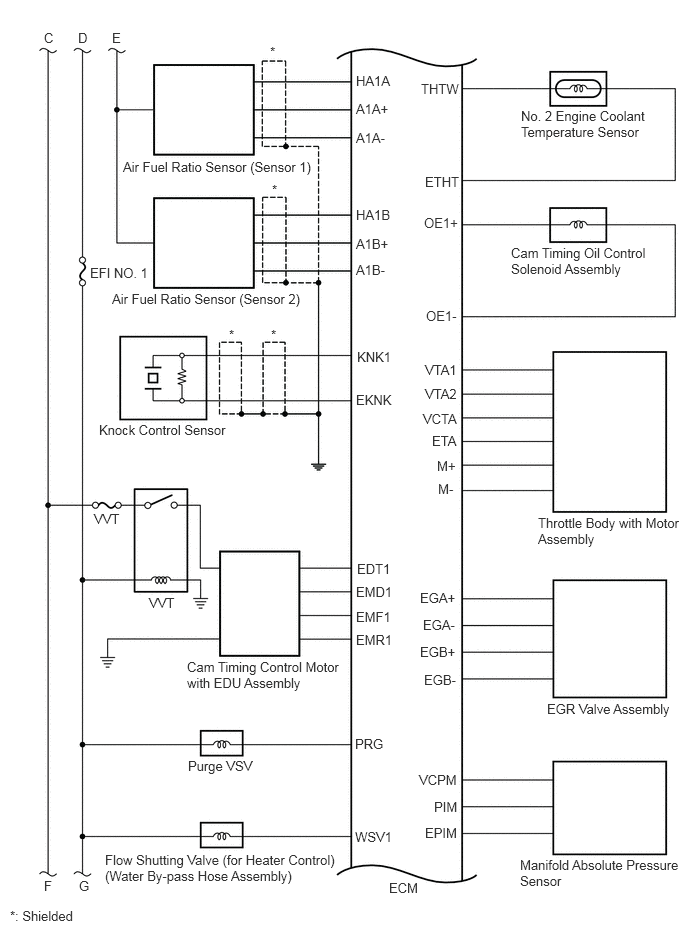

GTY836737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

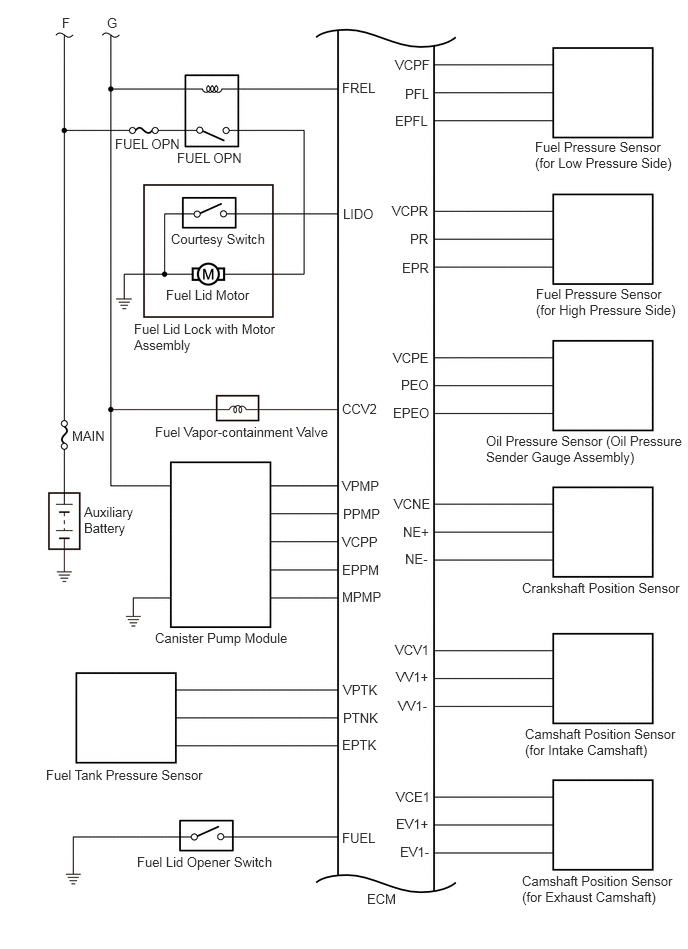

GTY838672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

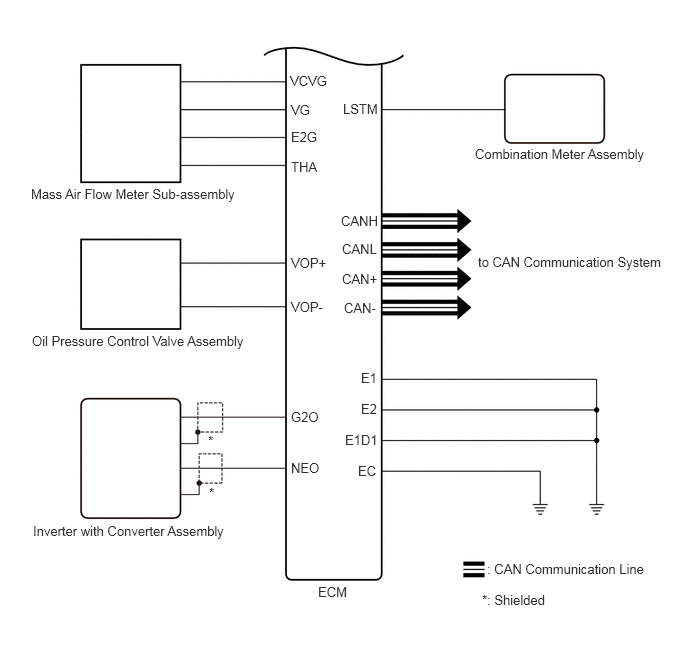

GTY753119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
