Parts Location [06/2018 - 07/2019]: Illustration
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

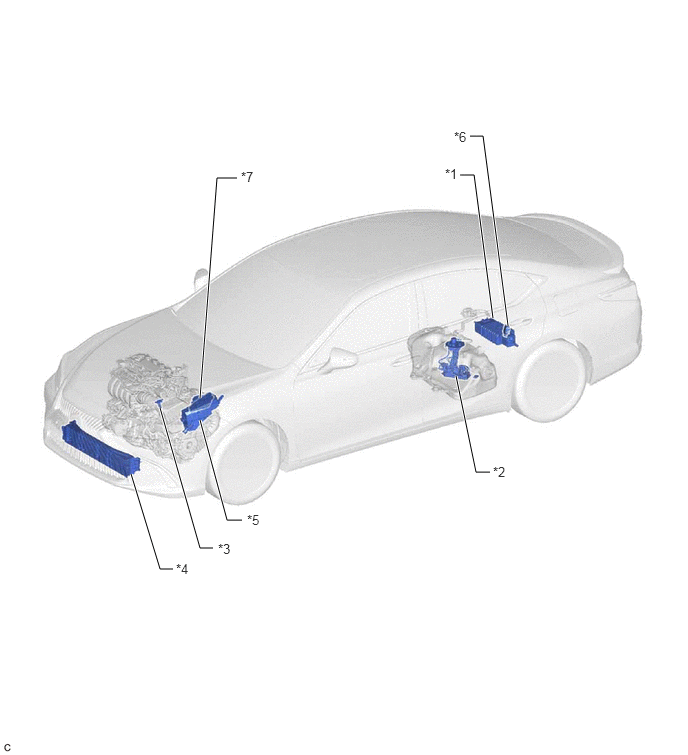

| *1 |
CANISTER |
*2 |
FUEL PUMP (for Low Pressure Side) |
| *3 |
MASS AIR FLOW METER SUB-ASSEMBLY |
*4 |
RADIATOR SHUTTER ASSEMBLY
- RADIATOR SHUTTER SUB-ASSEMBLY
- SWING GRILLE ACTUATOR ASSEMBLY
|
| *5 |
NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY |
*6 |
FUEL PUMP CONTROL ECU |
| *7 |
ECM |
- |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

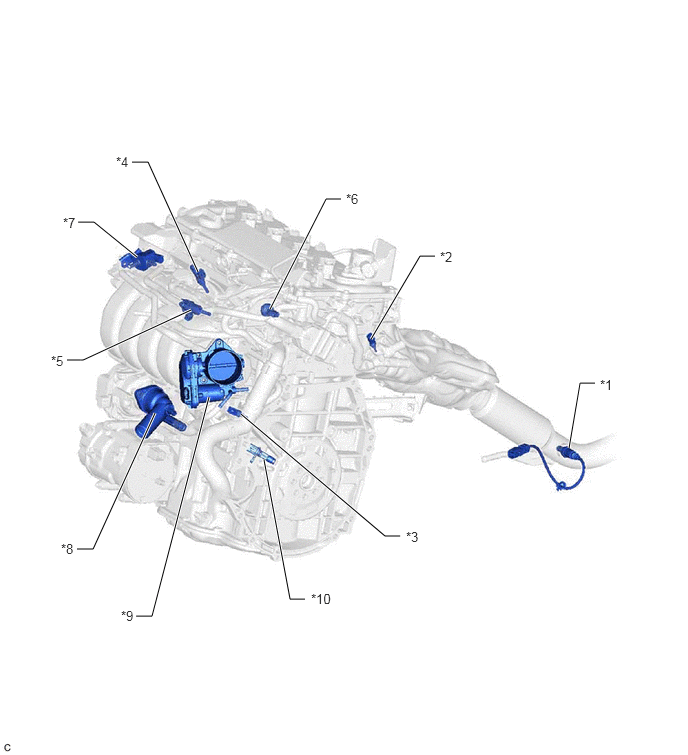

| *1 |
AIR FUEL RATIO SENSOR (Sensor 2) |
*2 |
ENGINE COOLANT TEMPERATURE SENSOR |
| *3 |
NO. 2 ENGINE COOLANT TEMPERATURE SENSOR |
*4 |
PORT FUEL INJECTOR ASSEMBLY |
| *5 |
DIRECT FUEL INJECTOR ASSEMBLY |
*6 |
NO. 2 FUEL PRESSURE SENSOR (for Low Pressure Side) |
| *7 |
PURGE VSV |
*8 |
WATER INLET WITH THERMOSTAT SUB-ASSEMBLY |
| *9 |
THROTTLE BODY WITH MOTOR ASSEMBLY |
*10 |
CRANKSHAFT POSITION SENSOR |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

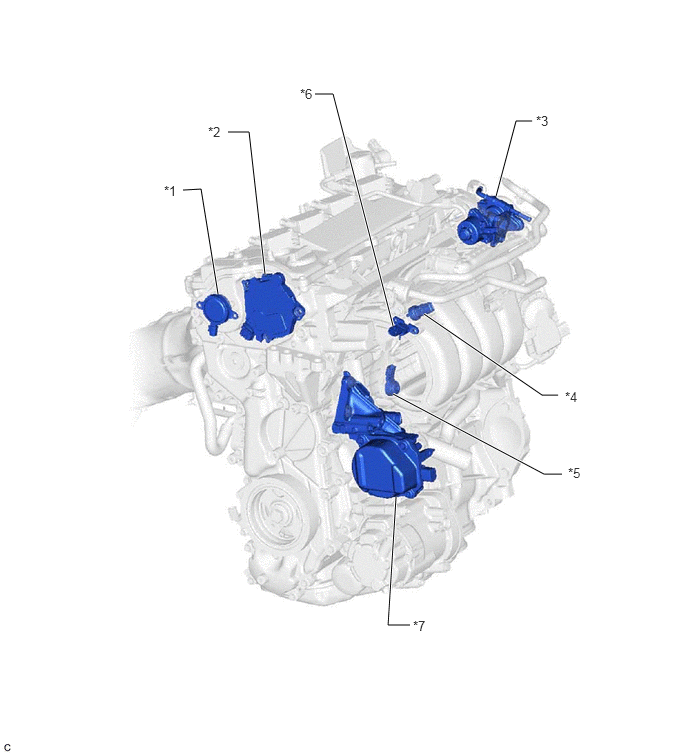

| *1 |
CAM TIMING OIL CONTROL SOLENOID ASSEMBLY |
*2 |
CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY |
| *3 |
EGR VALVE ASSEMBLY |
*4 |
FUEL PRESSURE SENSOR (for High Pressure Side) |
| *5 |
KNOCK CONTROL SENSOR |
*6 |
MANIFOLD ABSOLUTE PRESSURE SENSOR |
| *7 |
WATER INLET HOUSING WITH WATER PUMP SUB-ASSEMBLY |
- |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

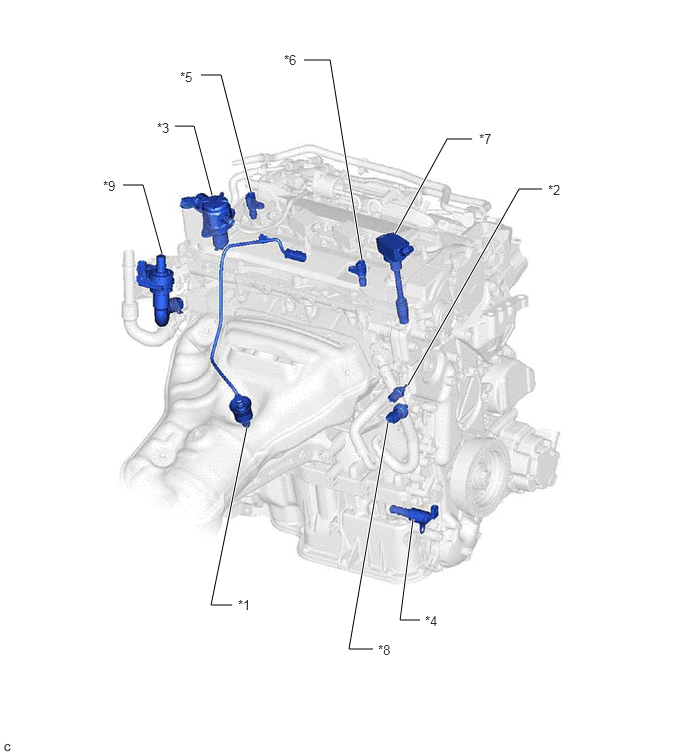

| *1 |
AIR FUEL RATIO SENSOR (Sensor 1) |
*2 |
ENGINE OIL TEMPERATURE SENSOR |
| *3 |
FUEL PUMP ASSEMBLY (for High Pressure Side) |
*4 |
OIL PRESSURE CONTROL VALVE ASSEMBLY |
| *5 |
CAMSHAFT POSITION SENSOR (for Intake Camshaft) |
*6 |
CAMSHAFT POSITION SENSOR (for Exhaust Camshaft) |
| *7 |
IGNITION COIL ASSEMBLY |
*8 |
OIL PRESSURE SENSOR (OIL PRESSURE SENDER GAUGE ASSEMBLY) |
| *9 |
WATER BYPASS HOSE ASSEMBLY
|
- |
- |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

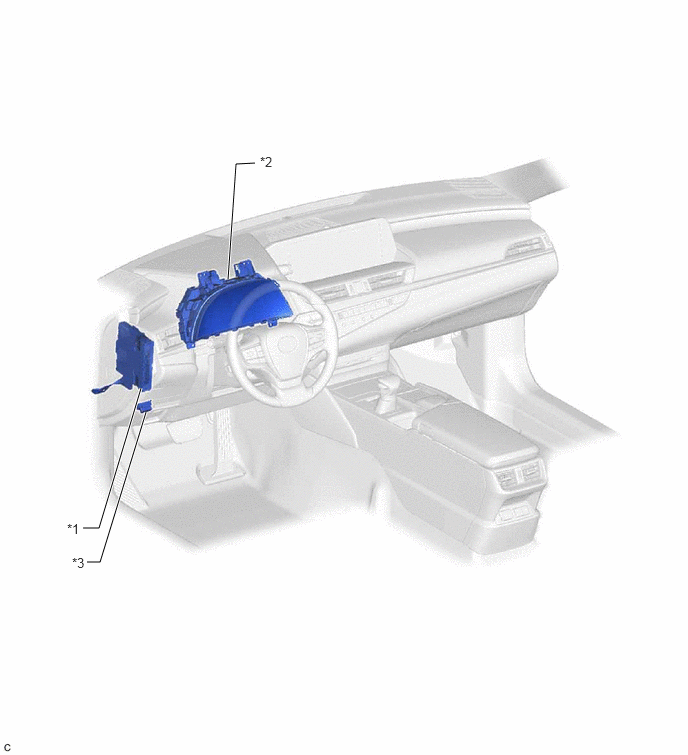

| *1 |
HYBRID VEHICLE CONTROL ECU ASSEMBLY |
*2 |
COMBINATION METER ASSEMBLY |
| *3 |
DLC3 |
- |
- |
