Components [08/2021 - ]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

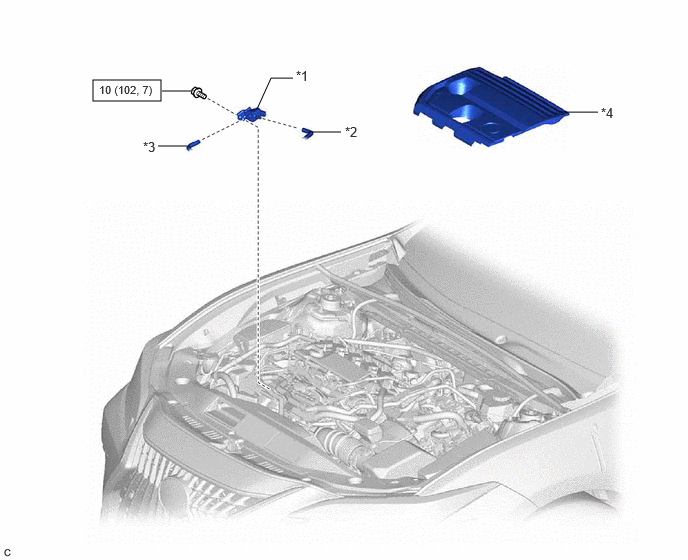

Fig 1: Purge Valve Replacement Components With Torque Specifications [08/2021 - ]

*1	PURGE VALVE (PURGE VSV)	*2	NO. 1 FUEL VAPOR FEED HOSE
*3	NO. 2 FUEL VAPOR FEED HOSE	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
