On-Vehicle Inspection [06/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)
    WARNING:

    To prevent injury due to contact with an operating cooling fan, keep your hands and clothing away from the cooling fans when working in the engine compartment with the engine running or the power switch on (IG).

    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Turn the Techstream on.
    4. Put the engine in Inspection Mode (Maintenance Mode).

      Powertrain > Hybrid Control > Utility

      Tester Display
      Inspection Mode
    5. Check the PCV valve (ventilation valve sub-assembly) operation.

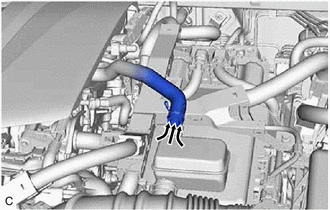

      GTY806404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Start the engine.
      2. Slide the clip and disconnect the No. 2 ventilation hose from the air cleaner hose assembly.
      3. Check that air is sucked into the No. 2 ventilation hose.

        Standard

        Air is sucked into the No. 2 ventilation hose.

        If the result is not as specified, replace the PCV valve (ventilation valve sub-assembly).
