Installation [06/2018 - ]: Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL FUEL VAPOR CONTAINMENT VALVE (FUEL TANK SOLENOID MAIN VALVE ASSEMBLY)
- Install the fuel vapor containment valve (fuel tank solenoid main valve assembly) to the vehicle body with the 2 nuts.
Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

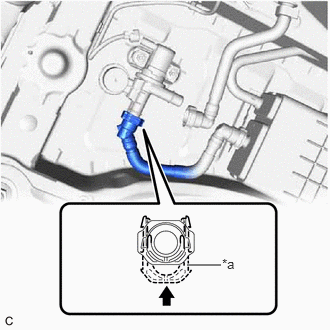

- Push the fuel tank vent hose onto the fuel vapor containment valve (fuel tank solenoid main valve assembly) and push in the retainer to engage the lock claws.NOTE:
- Check that there are no scratches or foreign matter around the connecting parts of the fuel tank vent hose and fuel vapor containment valve (fuel tank solenoid main valve assembly) before performing this work.
- After connecting the fuel tank vent hose, check that the fuel tank vent hose is securely connected by pulling on the fuel tank vent hose.
*a Retainer Push in - Connect the fuel vapor containment valve (fuel tank solenoid main valve assembly) connector.

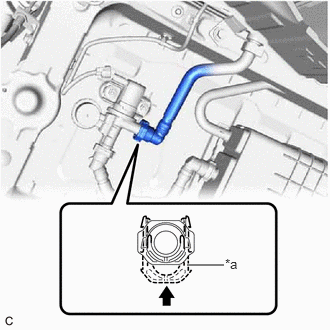

- Push the fuel tank vent hose sub-assembly onto the fuel vapor containment valve (fuel tank solenoid main valve assembly) and push in the retainer to engage the lock claws.NOTE:
- Check that there are no scratches or foreign matter around the connecting parts of the fuel tank vent hose sub-assembly and fuel vapor containment valve (fuel tank solenoid main valve assembly) before performing this work.
- After connecting the fuel tank vent hose sub-assembly, check that the fuel tank vent hose sub-assembly is securely connected by pulling on the fuel tank vent hose sub-assembly.
*a Retainer Push in
- Install the fuel vapor containment valve (fuel tank solenoid main valve assembly) to the vehicle body with the 2 nuts.
