Removal [09/2022 - ]: Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE REAR SEAT ASSEMBLY
Refer to REMOVAL [09/2022 - ]
- REMOVE REAR FLOOR SERVICE HOLE COVER
Refer to PROCEDURE - Step 5
- REMOVE FUEL TANK PRESSURE SENSOR (VAPOR PRESSURE SENSOR)

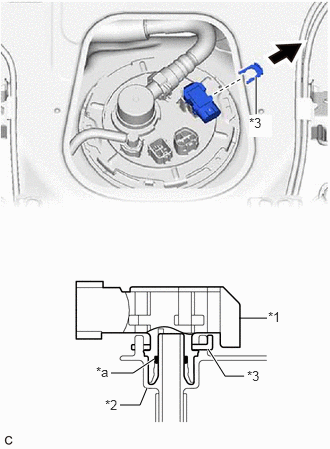

- Remove the tube joint clip and pull off the fuel tank pressure sensor (vapor pressure sensor) from the fuel tank assembly.
*1 Fuel Tank Pressure Sensor (Vapor Pressure Sensor) *2 Fuel Suction Plate Sub-assembly *3 Tube Joint Clip *a O-ring NOTE:- Remove any dirt or foreign matter on the fuel tank pressure sensor (vapor pressure sensor) before performing this work.
- Do not allow any scratches or foreign matter to get on the parts when disconnecting them as the fuel tank pressure sensor (vapor pressure sensor) has an O-ring that seals the fuel suction plate sub-assembly.
- Perform this work by hand. Do not use any tools.
- If the fuel suction plate sub-assembly and fuel tank pressure sensor (vapor pressure sensor) are stuck, carefully wiggle or push and pull the fuel tank pressure sensor (vapor pressure sensor) to release it. Pull the fuel tank pressure sensor (vapor pressure sensor) off the fuel suction plate sub-assembly carefully.
- Remove the tube joint clip and pull off the fuel tank pressure sensor (vapor pressure sensor) from the fuel tank assembly.
