Removal [08/2021 - 09/2022]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE EGR COOLER ASSEMBLY
Refer to REMOVAL [08/2021 - 09/2022]

DISCONNECT ENGINE WIRE

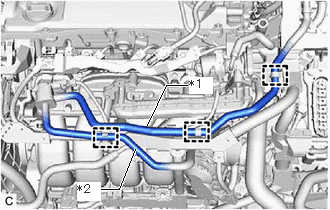

Disengage the 3 hose clamps and disconnect the No. 1 fuel vapor feed hose and No. 2 fuel vapor feed hose.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	No. 1 Fuel Vapor Feed Hose
*2	No. 2 Fuel Vapor Feed Hose

Disconnect the EGR valve assembly connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the bolt.
Disengage the 2 wire harness clamps and disconnect the engine wire.

REMOVE NO. 1 EGR PIPE SUB-ASSEMBLY

Using an 8 mm socket wrench, remove the 4 bolts and No. 1 EGR pipe sub-assembly from the intake manifold and EGR valve assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the EGR valve adapter gasket from the No. 1 EGR pipe sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the EGR inlet gasket from the intake manifold.

REMOVE EGR VALVE ASSEMBLY

Slide the clip and disconnect the No. 8 water by-pass hose from the EGR valve assembly.

*1	No. 8 Water By-pass Hose
*2	No. 4 Water By-pass Hose

Slide the clip and remove the No. 4 water by-pass hose from the EGR valve assembly.

Using an 8 mm socket wrench, remove the 2 bolts and EGR valve assembly from the camshaft housing.
