Removal [06/2018 - 08/2021]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. DRAIN ENGINE COOLANT (for Engine)

    Refer to PROCEDURE - Step 1

  2. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 18 [06/2018 - 08/2020] , or refer to PROCEDURE - Step 18 [08/2020 - 08/2021]

  3. DISCONNECT ENGINE WIRE

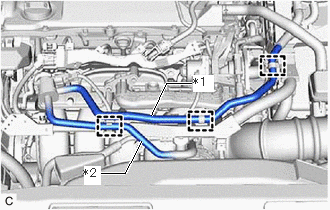

    1. Disengage the 3 hose clamps and disconnect the No. 1 fuel vapor feed hose and No. 2 fuel vapor feed hose.
      GTY783813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Fuel Vapor Feed Hose
      *2 No. 2 Fuel Vapor Feed Hose

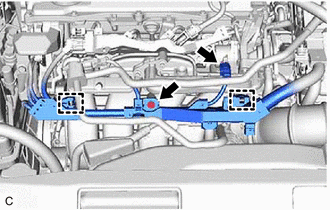

    2. Disconnect the EGR valve assembly connector.
      GTY815632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the bolt.
    4. Disengage the 2 wire harness clamps and disconnect the engine wire.
  4. DISCONNECT EGR COOLER ASSEMBLY
    1. Remove the 2 bolts and disconnect the EGR cooler assembly from the EGR valve assembly.
      GTY763890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the EGR valve gasket from the EGR valve assembly.
  5. REMOVE NO. 1 EGR PIPE SUB-ASSEMBLY

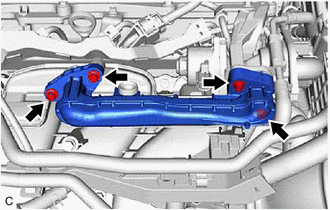

    1. Using an 8 mm socket wrench, remove the 4 bolts and No. 1 EGR pipe sub-assembly from the intake manifold and EGR valve assembly.
      GTY836174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the EGR valve adapter gasket from the No. 1 EGR pipe sub-assembly.
      GTY815652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the EGR inlet gasket from the intake manifold.
      GTY754218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE EGR VALVE ASSEMBLY

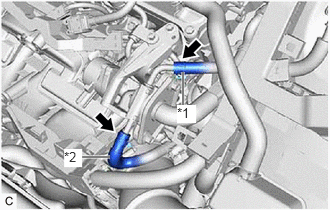

    1. Slide the 2 clips and disconnect the No. 4 water by-pass hose and No. 8 water by-pass hose from the EGR valve assembly.
      GTY829741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 4 Water By-pass Hose
      *2 No. 8 Water By-pass Hose
    2. for EGR Valve Bracket Connection Type:
      GTY763881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an 8 mm socket wrench, remove the bolt and disconnect the fuel pipe sub-assembly from the EGR valve bracket.
    3. Using the 8 mm socket wrench, remove the bolt.
      GTY763882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the EGR valve assembly with the EGR valve bracket from the camshaft housing vertically.
      GTY744291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Pin
      *b Hole
    5. Using the 8 mm socket wrench, remove the bolt and EGR valve assembly from the EGR valve bracket.
      GTY754222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
