Components [08/2021 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

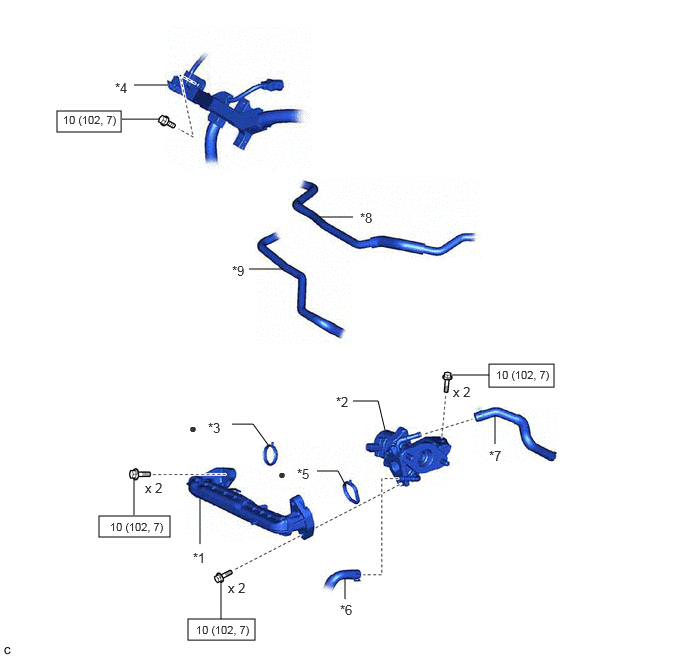

| *1 | NO. 1 EGR PIPE SUB-ASSEMBLY | *2 | EGR VALVE ASSEMBLY |
| *3 | EGR INLET GASKET | *4 | ENGINE WIRE |
| *5 | EGR VALVE ADAPTER GASKET | *6 | NO. 8 WATER BY-PASS HOSE |
| *7 | NO. 4 WATER BY-PASS HOSE | *8 | NO. 1 FUEL VAPOR FEED HOSE |
| *9 | NO. 2 FUEL VAPOR FEED HOSE | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
