Installation [06/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL LEAK DETECTION PUMP SUB-ASSEMBLY

    HINT:

    Only perform this procedure when replacement of the leak detection pump sub-assembly is necessary.

    1. Engage the 2 claws to install a new leak detection pump sub-assembly to the charcoal canister sub-assembly.
      GTY763864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not allow foreign matter such as grease, oil or water to adhere to the O-ring.
      • Ensure that the claws are engaged properly.
  2. INSTALL CANISTER (CHARCOAL CANISTER ASSEMBLY)
    1. Install the clip to the vehicle body.
    2. Engage the claw to install the canister (charcoal canister assembly) to the vehicle body as shown in the illustration.

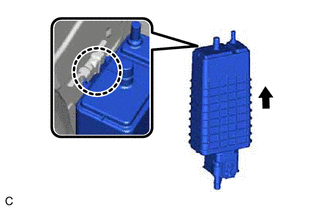

      GTY763865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the clip to connect the canister (charcoal canister assembly).
    4. Install the 2 bolts.

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

    5. Connect the purge line hose to the canister (charcoal canister assembly) and slide the clip to secure it.
    6. Push the fuel tank vent hose onto the canister (charcoal canister assembly) and push in the retainer to engage the lock claws.
      NOTE:
      • Check that there are no scratches or foreign matter around the connecting parts of the tube connector and pipe (canister (charcoal canister assembly)) before performing this work.
      • After connecting the fuel tank vent hose, check that the fuel tank vent hose is securely connected by pulling on the tube connector.

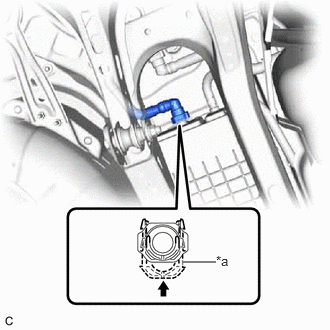

      GTY757842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer
      Push in
    7. Connect the leak detection pump sub-assembly connector.
    8. Push in the fuel tank vent hose sub-assembly to the pipe (leak detection pump sub-assembly) until the fuel tank vent hose sub-assembly makes a "click" sound.
      NOTE:
      • Check that there are no scratches or foreign matter around the connecting parts of the tube connector and pipe (leak detection pump sub-assembly) before performing this work.
      • After connecting the fuel tank vent hose sub-assembly, check that the fuel tank vent hose sub-assembly is securely connected by pulling on the tube connector.
  3. INSTALL REAR NO. 1 STABILIZER BAR BRACKET
    1. Install the 2 rear No. 1 stabilizer bar brackets to the vehicle body with the 4 bolts.

      Torque: 78 N.m (795 kgf/cm, 58 ft.lbf)
