Components [06/2018 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

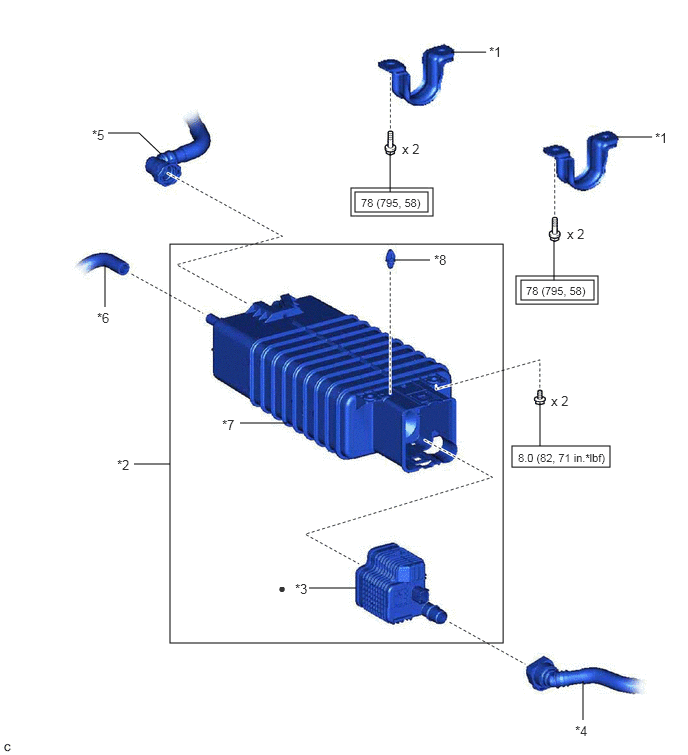

| *1 | REAR NO. 1 STABILIZER BAR BRACKET | *2 | CANISTER (CHARCOAL CANISTER ASSEMBLY) |
| *3 | LEAK DETECTION PUMP SUB-ASSEMBLY | *4 | FUEL TANK VENT HOSE SUB-ASSEMBLY |
| *5 | FUEL TANK VENT HOSE | *6 | PURGE LINE HOSE |
| *7 | CHARCOAL CANISTER SUB-ASSEMBLY | *8 | CLIP |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | - | - |
