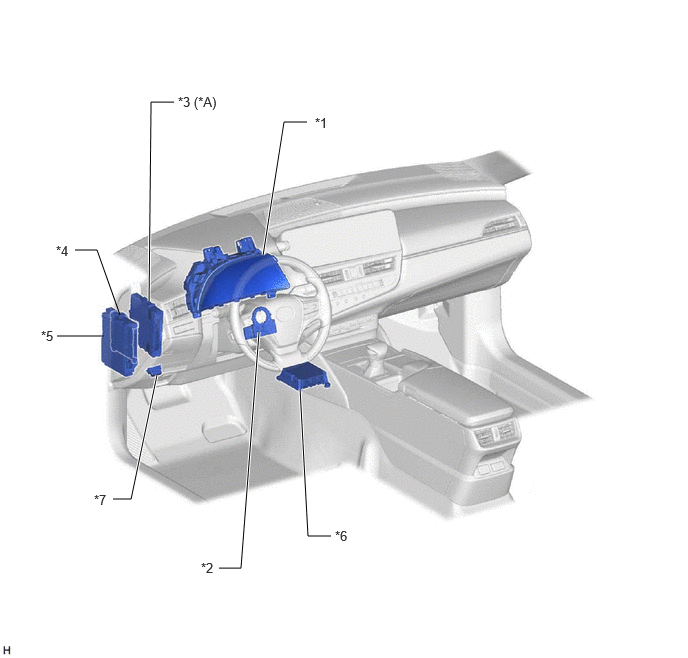

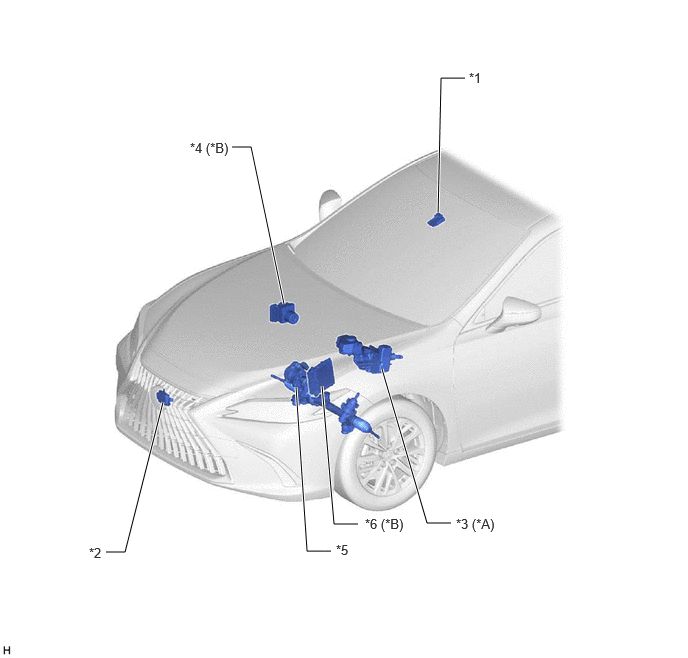

Parts Location [08/2021 - ]: Illustration
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus ES 350, 2024 Lexus ES 300h, 2024 Lexus ES 250, 2023 Lexus ES 350, and 2023 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
| *A | for HV Model | *B | for Gasoline Model |
| *1 | FORWARD RECOGNITION CAMERA | *2 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
| *3 | SKID CONTROL ECU (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY) | *4 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) |
| *5 | POWER STEERING ECU (RACK AND PINION POWER STEERING GEAR ASSEMBLY) | *6 | ECM |
