Components [08/2021 - ]
WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
COOL AIR INTAKE DUCT SEAL |
*2 |
INLET AIR CLEANER ASSEMBLY |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

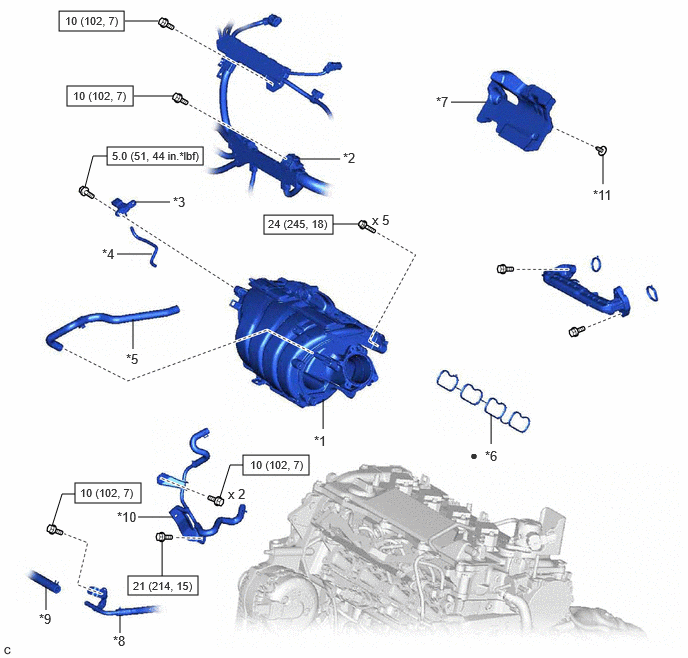

| *1 |
INTAKE MANIFOLD |
*2 |
ENGINE WIRE |
| *3 |
E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR) |
*4 |
VACUUM HOSE |
| *5 |
NO. 2 FUEL VAPOR FEED HOSE |
*6 |
NO. 1 INTAKE MANIFOLD TO HEAD GASKET |
| *7 |
NO. 1 ENGINE COVER |
*8 |
NO. 3 WATER BY-PASS PIPE |
| *9 |
NO. 5 WATER BY-PASS HOSE |
*10 |
NO. 2 WATER BY-PASS PIPE |
| *11 |
CLIP |
*12 |
NO. 1 EGR PIPE SUB-ASSEMBLY |
| *13 |
EGR VALVE ADAPTER GASKET |
*14 |
EGR INLET GASKET |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
