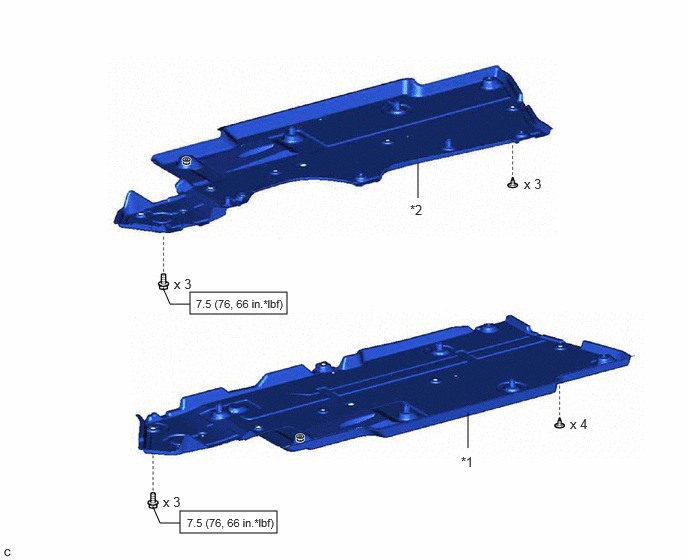

Fig 1: Exhaust Pipe Replacement Components With Torque Specifications (1 of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT FLOOR COVER LH	*2	FRONT FLOOR COVER RH
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

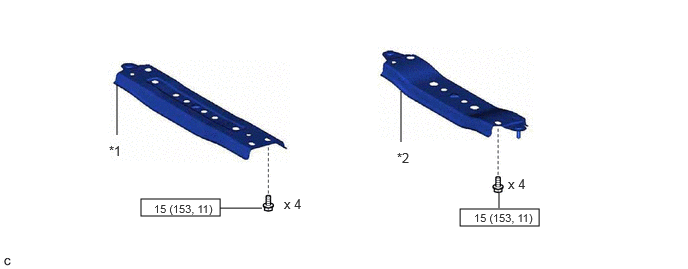

Fig 2: Exhaust Pipe Replacement Components With Torque Specifications (2 of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CENTER FLOOR CROSSMEMBER BRACE	*2	FRONT CENTER FLOOR BRACE
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

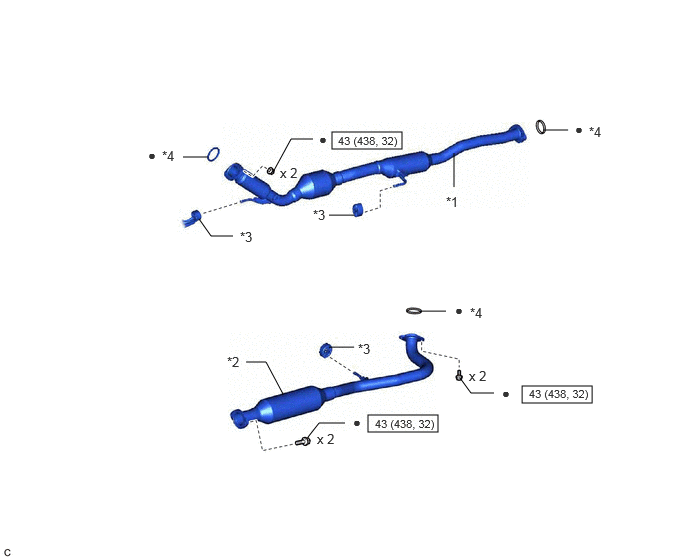

Fig 3: Exhaust Pipe Replacement Components With Torque Specifications (3 of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)	*2	CENTER EXHAUST PIPE ASSEMBLY
*3	EXHAUST PIPE SUPPORT	*4	GASKET
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

Fig 4: Exhaust Pipe Replacement Components (4 of 4)

TAIL EXHAUST PIPE ASSEMBLY

EXHAUST PIPE SUPPORT
