Components [08/2020 - ]

WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.

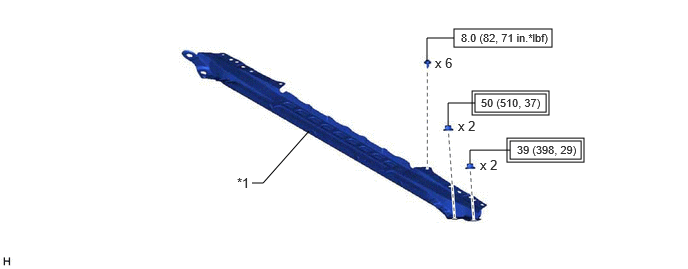

Fig 1: Exhaust Manifold Replacement Components With Torque Specifications (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque

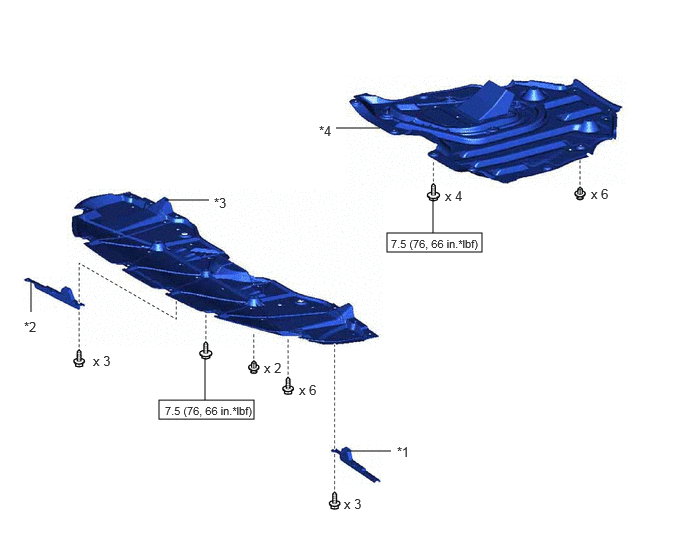

Fig 2: Exhaust Manifold Replacement Components With Torque Specifications (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT WHEEL OPENING EXTENSION PAD LH	*2	FRONT WHEEL OPENING EXTENSION PAD RH
*3	NO. 1 ENGINE UNDER COVER	*4	NO. 2 ENGINE UNDER COVER ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

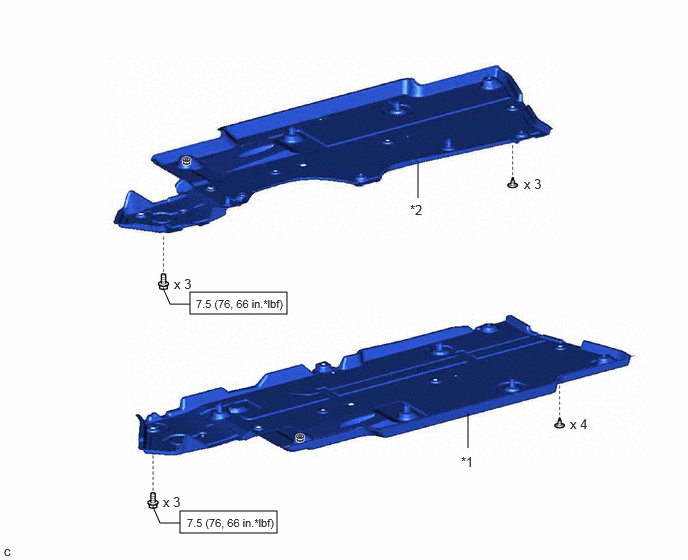

Fig 3: Exhaust Manifold Replacement Components With Torque Specifications (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT FLOOR COVER LH	*2	FRONT FLOOR COVER RH
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

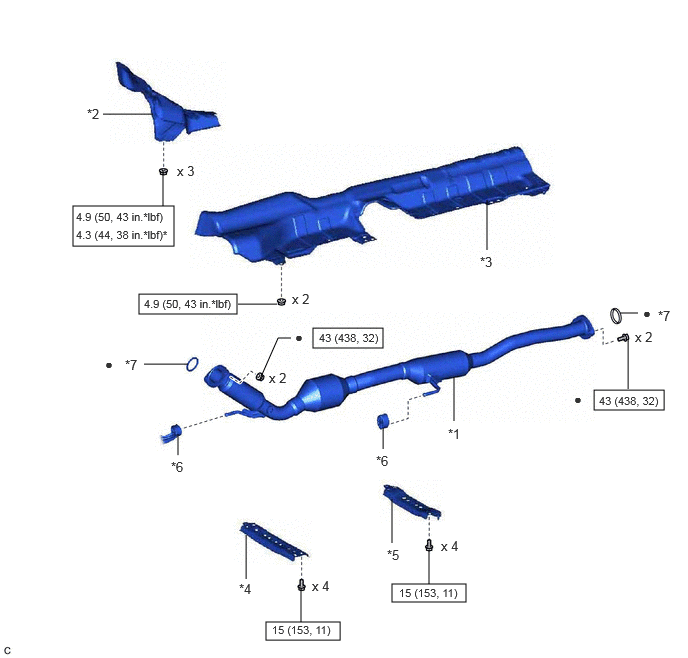

Fig 4: Exhaust Manifold Replacement Components With Torque Specifications (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)	*2	NO. 1 UPPER FRONT FLOOR HEAT INSULATOR
*3	FRONT LOWER NO. 1 FLOOR HEAT INSULATOR	*4	CENTER FLOOR CROSSMEMBER BRACE
*5	FRONT CENTER FLOOR BRACE	*6	EXHAUST PIPE SUPPORT
*7	GASKET	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with a union nut wrench
•	Non-reusable part	-	-

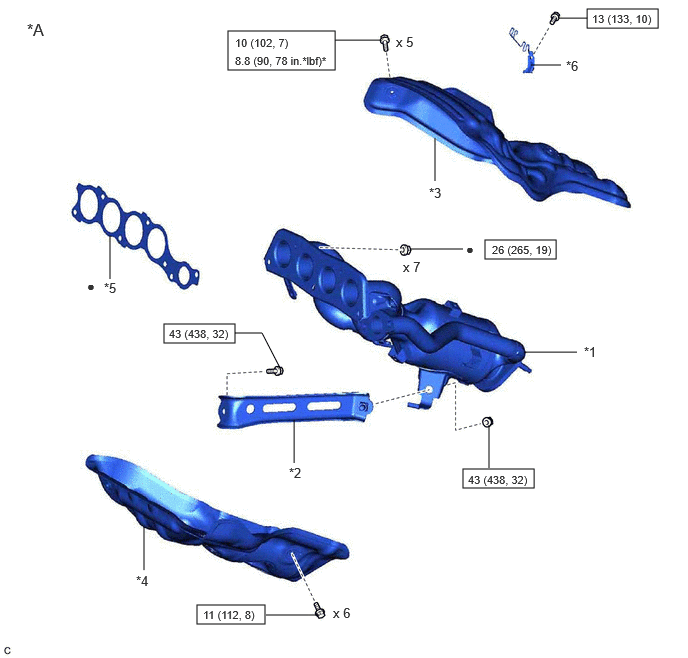

Fig 5: Exhaust Manifold Replacement Components With Torque Specifications (5 Of 6)

*A	Type A	-	-
*1	EXHAUST MANIFOLD (TWC: Front Catalyst)	*2	MANIFOLD STAY
*3	NO. 1 EXHAUST MANIFOLD HEAT INSULATOR	*4	NO. 2 EXHAUST MANIFOLD HEAT INSULATOR
*5	EXHAUST MANIFOLD TO HEAD GASKET	*6	WIRE HARNESS CLAMP BRACKET
	N.m (kgf/cm, ft.lbf): Specified torque	*	For use with a union nut wrench
•	Non-reusable part	-	-

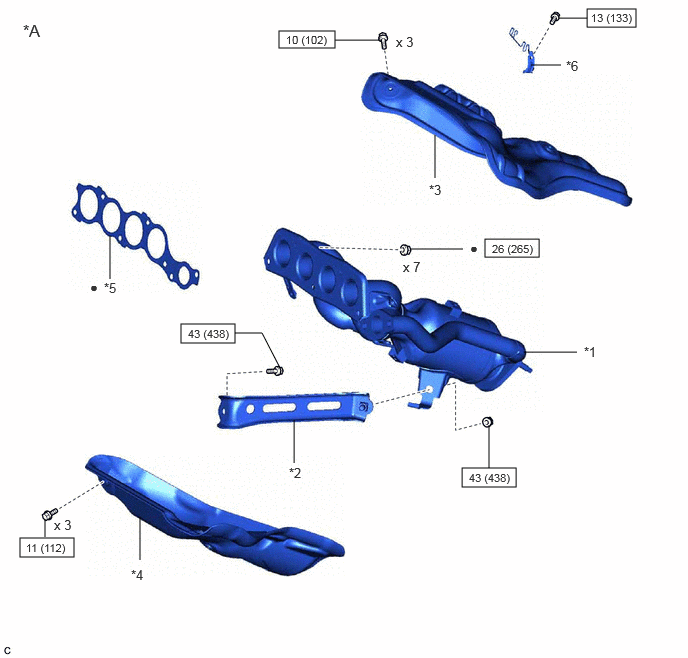

Fig 6: Exhaust Manifold Replacement Components With Torque Specifications (6 Of 6)

*A	Type B	-	-
*1	EXHAUST MANIFOLD (TWC: Front Catalyst)	*2	MANIFOLD STAY
*3	NO. 1 EXHAUST MANIFOLD HEAT INSULATOR	*4	NO. 2 EXHAUST MANIFOLD HEAT INSULATOR
*5	EXHAUST MANIFOLD TO HEAD GASKET	*6	WIRE HARNESS CLAMP BRACKET
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
•	Non-reusable part	-	-
