Components [08/2021 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

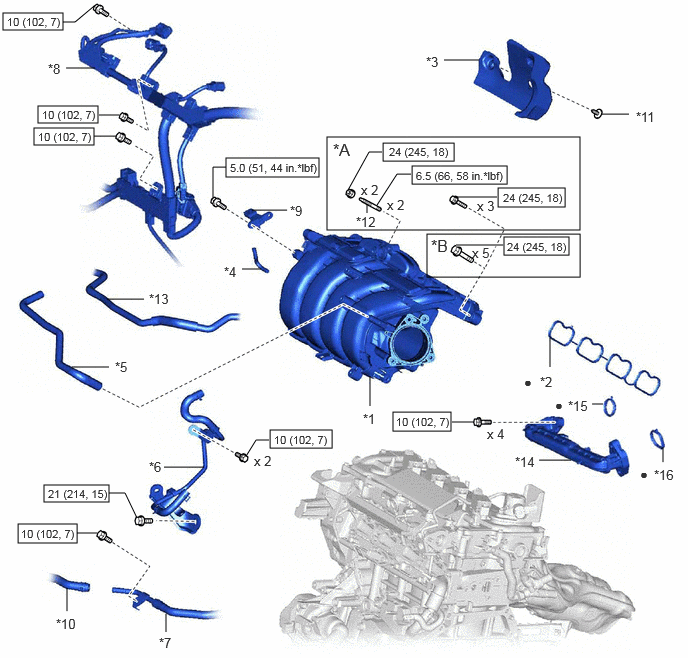

| *A | w/ Stud Bolt | *B | w/o Stud Bolt |
| *1 | INTAKE MANIFOLD | *2 | NO. 1 INTAKE MANIFOLD TO HEAD GASKET |
| *3 | NO. 1 ENGINE COVER | *4 | VACUUM HOSE |
| *5 | NO. 2 FUEL VAPOR FEED HOSE | *6 | NO. 2 WATER BY-PASS PIPE |
| *7 | NO. 3 WATER BY-PASS PIPE | *8 | ENGINE WIRE |
| *9 | E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR) | *10 | NO. 5 WATER BY-PASS HOSE |
| *11 | CLIP | *12 | STUD BOLT |
| *13 | NO. 1 FUEL VAPOR FEED HOSE | *14 | NO. 1 EGR PIPE SUB-ASSEMBLY |
| *15 | EGR INLET GASKET | *16 | EGR VALVE ADAPTER GASKET |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
