Removal [06/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE TAIL EXHAUST PIPE ASSEMBLY LH
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

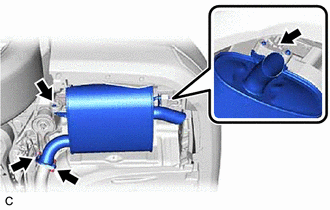

    1. Remove the 2 bolts and disconnect the tail exhaust pipe assembly LH from the center exhaust pipe assembly.
      GTY806414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the tail exhaust pipe assembly LH from the 2 exhaust pipe supports.
    3. Remove the gasket from the center exhaust pipe assembly.
  2. REMOVE CENTER EXHAUST PIPE ASSEMBLY
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

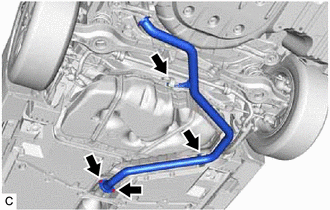

    1. Remove the 2 bolts and disconnect the center exhaust pipe assembly from the front exhaust pipe assembly (TWC: Rear Catalyst).
      GTY754330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the center exhaust pipe assembly from the 2 exhaust pipe supports.
    3. Remove the gasket from the front exhaust pipe assembly (TWC: Rear Catalyst).
  3. REMOVE FRONT FLOOR COVER LH
    1. Type A:
      GTY803444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 4 bolts and 4 clips (A).
      2. Disengage the grommet (B) and 6 clips (C) to remove the front floor cover LH.
    2. Type B:
      GTY808039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 3 bolts and 4 clips (A).
      2. Disengage the grommet (B) and 6 clips (C) to remove the front floor cover LH.
  4. REMOVE FRONT FLOOR COVER RH
    1. Type A:
      1. Remove the 3 bolts and 4 clips (A).
        GTY825959Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the grommet (B) and 6 clips (C) to remove the front floor cover RH.
    2. Type B:
      1. Remove the 4 bolts and 4 clips (A).
        GTY947314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the grommet (B) and 6 clips (C) to remove the front floor cover RH.
  5. REMOVE FRONT CENTER FLOOR BRACE

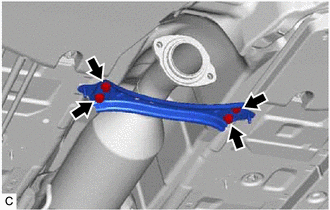

    1. Remove the 4 bolts and front center floor brace from the vehicle body.
      GTY771567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE CENTER FLOOR CROSSMEMBER BRACE

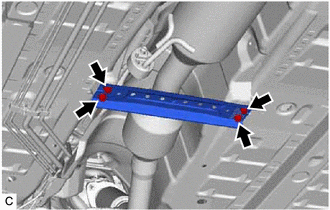

    1. Remove the 4 bolts and center floor crossmember brace from the vehicle body.
      GTY754339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE AIR FUEL RATIO SENSOR (for Sensor 2)

    Refer to REMOVAL [06/2018 - ]

  8. REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

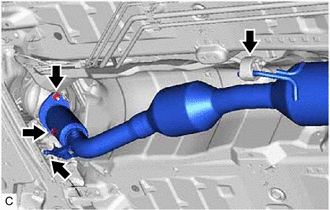

    1. Remove the 2 nuts and disconnect the front exhaust pipe assembly (TWC: Rear Catalyst) from the exhaust manifold (TWC: Front Catalyst).
      GTY754200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the front exhaust pipe assembly (TWC: Rear Catalyst) from the 2 exhaust pipe supports.
    3. Remove the gasket from the front exhaust pipe assembly (TWC: Rear Catalyst).
