Components [06/2018 - ]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Exhaust Pipe Replacement Components With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	Type A	*B	Type B
*1	FRONT FLOOR COVER RH	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 2: Exhaust Pipe Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	Type A	*B	Type B
*1	FRONT FLOOR COVER LH	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 3: Exhaust Pipe Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CENTER FLOOR CROSSMEMBER BRACE	*2	FRONT CENTER FLOOR BRACE
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

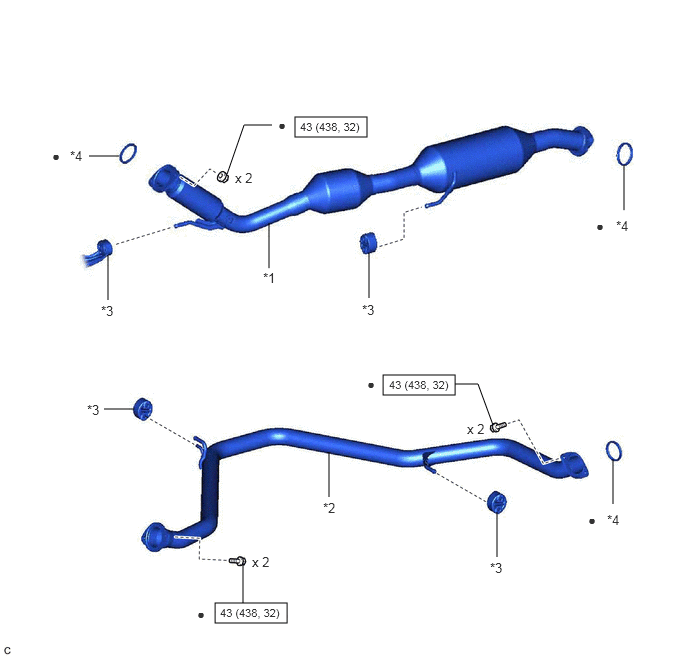

Fig 4: Exhaust Pipe Replacement Components With Torque Specifications (4 Of 5)

*1	FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)	*2	CENTER EXHAUST PIPE ASSEMBLY
*3	EXHAUST PIPE SUPPORT	*4	GASKET
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

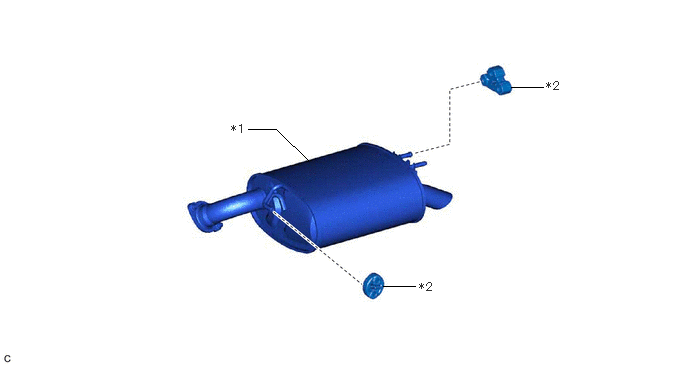

Fig 5: Exhaust Pipe Replacement Components (5 Of 5)

TAIL EXHAUST PIPE ASSEMBLY LH

EXHAUST PIPE SUPPORT
