Removal [06/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT FLOOR COVER LH

    See step  3

  2. REMOVE FRONT FLOOR COVER RH

    See step  4

  3. REMOVE FRONT CENTER FLOOR BRACE

    See step  5

  4. REMOVE CENTER FLOOR CROSSMEMBER BRACE

    See step  6

  5. REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)
    WARNING:

    To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

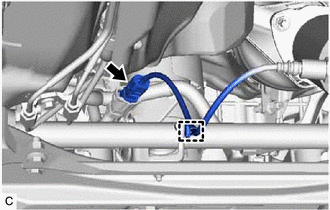

    1. Disengage the wire harness clamp.
      GTY754162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the air fuel ratio sensor (for sensor 2) connector.

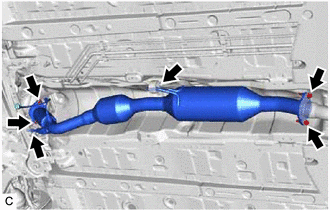

    3. Remove the 2 bolts, 2 nuts and disconnect the front exhaust pipe assembly (TWC: Rear Catalyst) from the exhaust manifold (TWC: Front Catalyst) and center exhaust pipe assembly.
      GTY754157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the front exhaust pipe assembly (TWC: Rear Catalyst) from the 2 exhaust pipe supports.
    5. Remove the 2 gaskets from the front exhaust pipe assembly (TWC: Rear Catalyst).
  6. REMOVE FRONT LOWER NO. 1 FLOOR HEAT INSULATOR

    Refer to PROCEDURE - Step 7

  7. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 7 [06/2018 - 08/2020] , or refer to PROCEDURE - Step 7 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 7 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 7 [09/2022 - ]

  8. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 8 [06/2018 - 08/2020] , or refer to PROCEDURE - Step 8 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 8 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 8 [09/2022 - ]

  9. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 9 [06/2018 - 08/2020] , or refer to PROCEDURE - Step 9 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 9 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 9 [09/2022 - ]

  10. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 10 [06/2018 - 08/2020] , or refer to PROCEDURE - Step 10 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 10 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 10 [09/2022 - ]

  11. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

    Refer to REMOVAL [06/2018 - ]

  12. REMOVE FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 4 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 4 [09/2022 - ]

  13. REMOVE AIR FUEL RATIO SENSOR (for Sensor 1)

    Refer to REMOVAL [06/2018 - ]

  14. REMOVE WIRE HARNESS CLAMP BRACKET
    WARNING:

    To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.

    1. Remove the bolt and wire harness clamp bracket.
      GTY754159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. SEPARATE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR
    WARNING:

    To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.

    1. Type A:
      1. Remove the 5 bolts and separate the No. 1 exhaust manifold heat insulator from the exhaust manifold (TWC: Front Catalyst).
        GTY754242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Type B:

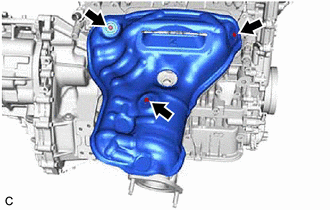

      1. Remove the 3 bolts and separate the No. 1 exhaust manifold heat insulator from the exhaust manifold.
        GTY1084861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. SEPARATE NO. 1 UPPER FRONT FLOOR HEAT INSULATOR
    WARNING:

    To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.

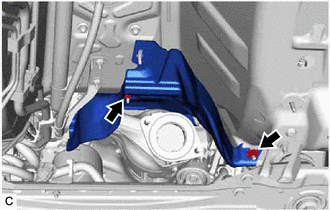

    1. Remove the 2 nuts and separate the No. 1 upper front floor heat insulator from the vehicle body.
      GTY754243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE MANIFOLD STAY
    WARNING:

    To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.

    1. Remove the bolt, nut and manifold stay from the exhaust manifold (TWC: Front Catalyst) and cylinder block sub-assembly.
      GTY771566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE EXHAUST MANIFOLD (TWC: Front Catalyst)
    WARNING:

    To prevent burns, do not touch the engine, exhaust manifold or other high temperature components while the engine is hot.

    1. Using a 12 mm deep socket wrench, remove the 7 nuts and separate the exhaust manifold (TWC: Front Catalyst) from the cylinder head sub-assembly.
      GTY754332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the No. 1 upper front floor heat insulator, No. 1 exhaust manifold heat insulator and exhaust manifold (TWC: Front Catalyst).
    3. Remove the exhaust manifold to head gasket from the cylinder head sub-assembly.
      GTY754333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE NO. 2 EXHAUST MANIFOLD HEAT INSULATOR
    1. Type A:
      GTY754188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 6 bolts and No. 2 exhaust manifold heat insulator from the exhaust manifold (TWC: Front Catalyst).
    2. Type B:
      GTY996840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 3 bolts and No. 2 exhaust manifold heat insulator from the exhaust manifold.
