Parts Location [09/2022 - ]: Illustration
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2024 Lexus ES 300h, 2024 Lexus ES 250, 2023 Lexus ES 350, and 2023 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

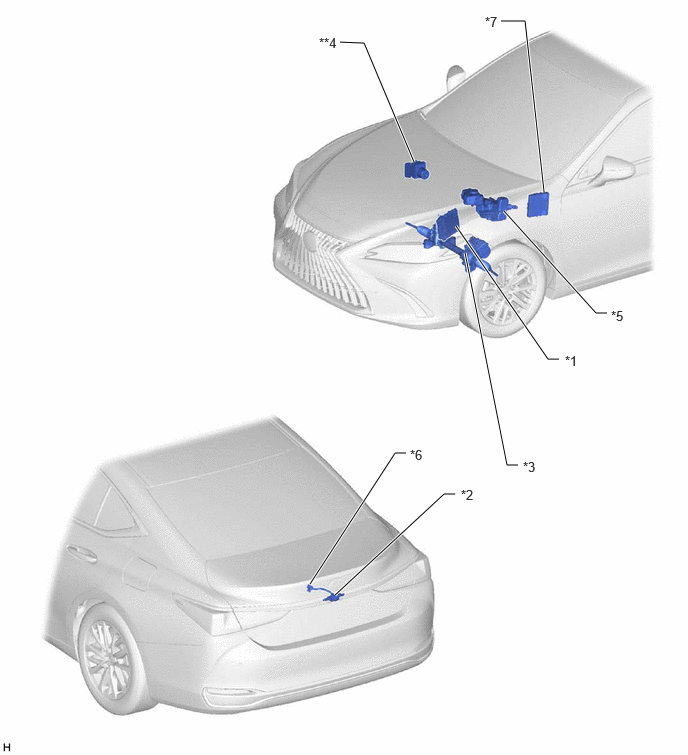

| *1 | ECM (for Gasoline Model) | *2 | REAR TELEVISION CAMERA ASSEMBLY |
| *3 | RACK AND PINION POWER STEERING GEAR ASSEMBLY - POWER STEERING ECU |
*4 | BRAKE ACTUATOR ASSEMBLY (for Gasoline Model) - SKID CONTROL ECU |
| *5 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY (for HV Model) - SKID CONTROL ECU |
*6 | TELEVISION CAMERA WIRE |
| *7 | HYBRID VEHICLE CONTROL ECU (for HV Model) | - | - |
