Components [08/2021 - ]

WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Engine Unit Replacement Components With Torque Specifications [08/2021 - ] (1 Of 12)
GTY1084847Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A Type A - -
*1 EXHAUST MANIFOLD (TWC: Front Catalyst) *2 MANIFOLD STAY
*3 NO. 1 EXHAUST MANIFOLD HEAT INSULATOR *4 EXHAUST MANIFOLD TO HEAD GASKET
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Fig 2: Engine Unit Replacement Components With Torque Specifications [08/2021 - ] (2 Of 12)
GTY1084920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A Type B - -
*1 EXHAUST MANIFOLD (TWC: Front Catalyst) *2 MANIFOLD STAY
*3 NO. 1 EXHAUST MANIFOLD HEAT INSULATOR *4 EXHAUST MANIFOLD TO HEAD GASKET
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part

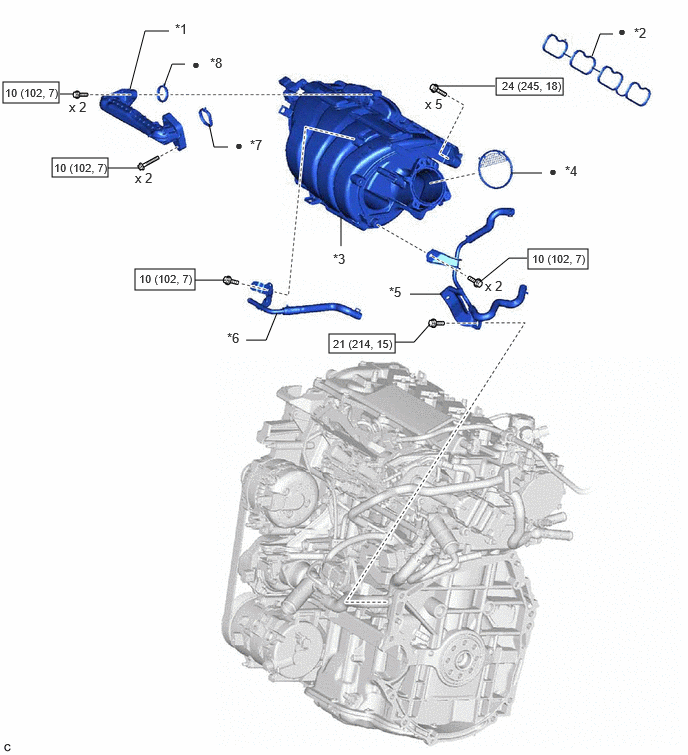

Fig 3: Engine Unit Replacement Components With Torque Specifications [08/2021 - ] (3 Of 12)
GTY1084760Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 1 EGR PIPE SUB-ASSEMBLY *2 NO. 1 INTAKE MANIFOLD TO HEAD GASKET
*3 INTAKE MANIFOLD *4 THROTTLE BODY GASKET
*5 NO. 2 WATER BY-PASS PIPE *6 NO. 3 WATER BY-PASS PIPE
*7 EGR VALVE ADAPTER GASKET *8 EGR INLET GASKET
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Fig 4: Engine Unit Replacement Components With Torque Specifications [08/2021 - ] (4 Of 12)
GTY948819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 5 ENGINE WIRE *2 NO. 1 FUEL PIPE SUB-ASSEMBLY
*3 FUEL TUBE SUB-ASSEMBLY *4 FUEL PUMP ASSEMBLY (for High Pressure)
*5 O-RING *6 FUEL PUMP FLANGE
*7 FUEL PUMP SPACER GASKET *8 FUEL PUMP LIFTER ASSEMBLY
*9 FUEL DELIVERY PIPE SUB-ASSEMBLY *10 PORT FUEL INJECTOR ASSEMBLY
*11 INJECTOR VIBRATION INSULATOR *12 FUEL DELIVERY PIPE
*13 NO. 3 FUEL INJECTOR BACK-UP RING *14 NO. 1 FUEL INJECTOR BACK-UP RING
*15 DIRECT FUEL INJECTOR ASSEMBLY *16 NOZZLE HOLDER CLAMP
*17 NO. 1 DELIVERY PIPE SPACER *18 C-RING
*19 FUEL INJECTOR SEAL *20 FUEL PIPE CLAMP
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
* For use with a union nut wrench • Non-reusable part
Fig 5: Engine Unit Replacement Components With Torque Specifications [08/2021 - ] (5 Of 12)
GTY1084603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COMPRESSOR ASSEMBLY WITH PULLEY *2 ENGINE OIL LEVEL DIPSTICK GUIDE
*3 GENERATOR ASSEMBLY *4 NO. 2 TIMING CHAIN COVER INSULATOR
*5 V-RIBBED BELT TENSIONER ASSEMBLY *6 V-RIBBED BELT
*7 ENGINE OIL LEVEL DIPSTICK *8 O-RING
*9 STUD BOLT - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Fig 6: Engine Unit Replacement Components With Torque Specifications [08/2021 - ] (6 Of 12)
GTY948337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 DRIVE SHAFT BEARING BRACKET *2 NO. 6 ENGINE WIRE
*3 SENSOR WIRE *4 GASKET
*5 WIRE HARNESS CLAMP BRACKET *6 WATER INLET WITH THERMOSTAT SUB-ASSEMBLY
*7 ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING) *8 NO. 3 EXHAUST MANIFOLD HEAT INSULATOR
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
• Non-reusable part - -

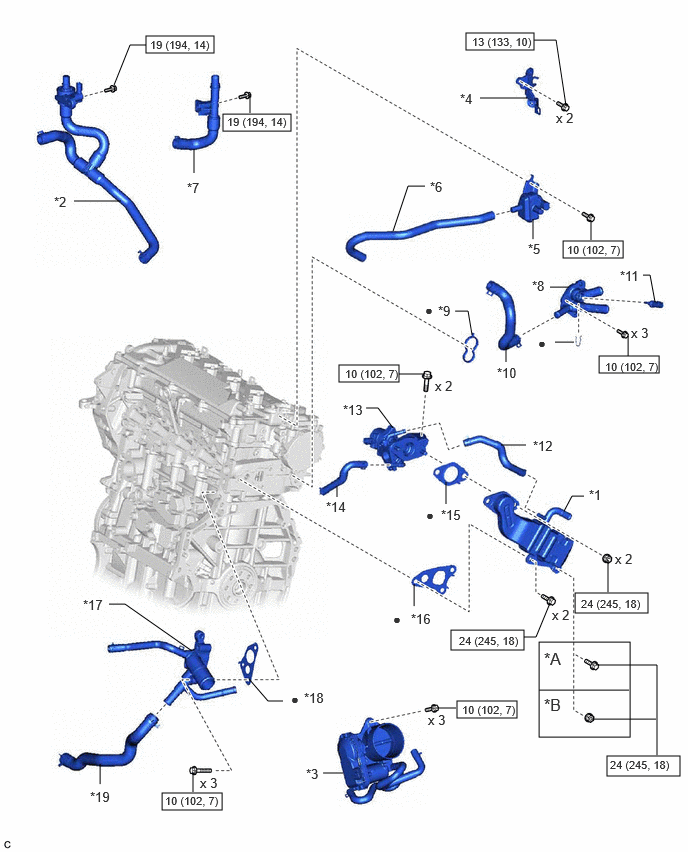

Fig 7: Engine Unit Replacement Components With Torque Specifications [08/2021 - ] (7 Of 12)
GTY1084921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A Type A *B Type B
*1 EGR COOLER ASSEMBLY *2 FLOW SHUTTING VALVE (WATER BY-PASS HOSE ASSEMBLY)
*3 THROTTLE BODY WITH MOTOR ASSEMBLY *4 WATER HOSE CLAMP BRACKET
*5 PURGE VALVE (PURGE VSV) *6 NO. 2 FUEL VAPOR FEED HOSE
*7 NO. 2 WATER BY-PASS PIPE SUB-ASSEMBLY *8 OUTLET WATER BY-PASS SUB-ASSEMBLY
*9 OUTLET WATER PIPE GASKET *10 NO. 3 WATER BY-PASS HOSE
*11 ENGINE COOLANT TEMPERATURE SENSOR *12 NO. 4 WATER BY-PASS HOSE
*13 EGR VALVE ASSEMBLY *14 NO. 8 WATER BY-PASS HOSE
*15 EGR VALVE GASKET *16 EGR COOLER GASKET
*17 WATER OUTLET *18 WATER OUTLET GASKET
*19 NO. 7 WATER BY-PASS HOSE - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
Fig 8: Engine Unit Replacement Components With Torque Specifications [08/2021 - ] (8 Of 12)
GTY948821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CAM TIMING CONTROL MOTOR O-RING *2 CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY
*3 CAM TIMING OIL CONTROL SOLENOID ASSEMBLY *4 CRANKSHAFT PULLEY ASSEMBLY
*5 ENGINE MOUNTING BRACKET RH *6 ENGINE MOUNTING INSULATOR RH
*7 CRANKSHAFT PULLEY BOLT *8 IGNITION COIL ASSEMBLY
*9 NO. 2 ENGINE COVER *10 VACUUM PUMP ASSEMBLY
*11 NO. 2 VACUUM SWITCHING VALVE BRACKET *12 O-RING
*13 TIMING GEAR COVER INSULATOR *14 PLATE WASHER
*15 NO. 1 VACUUM PUMP O-RING - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
• Non-reusable part * Precoated part
Fig 9: Engine Unit Replacement Components With Torque Specifications [08/2021 - ] (9 Of 12)
GTY948374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 OIL FILLER CAP GASKET *2 OIL FILLER CAP ASSEMBLY
*3 CAMSHAFT POSITION SENSOR (for Intake Side) *4 CYLINDER HEAD COVER SUB-ASSEMBLY
*5 CAMSHAFT POSITION SENSOR (for Exhaust Side) *6 SPARK PLUG
*7 SPARK PLUG TUBE GASKET *8 CAMSHAFT BEARING CAP OIL HOLE GASKET
*9 CYLINDER HEAD COVER GASKET *10 O-RING
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
* Precoated part - -
Fig 10: Engine Unit Replacement Components With Torque Specifications [08/2021 - ] (10 Of 12)
GTY1205453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A Type A *B Type B
*1 CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY *2 CAMSHAFT TIMING GEAR ASSEMBLY
*3 OIL PRESSURE CONTROL VALVE ASSEMBLY *4 CHAIN SUB-ASSEMBLY
*5 CHAIN TENSIONER SLIPPER *6 NO. 1 CHAIN TENSIONER ASSEMBLY
*7 NO. 1 CHAIN VIBRATION DAMPER *8 OIL PUMP DRIVE CHAIN SUB-ASSEMBLY
*9 NO. 2 TIMING CHAIN COVER ASSEMBLY *10 OIL PUMP DRIVE SPROCKET
*11 OIL PUMP DRIVE SHAFT SPROCKET *12 CRANKSHAFT TIMING SPROCKET
*13 STRAIGHT SCREW PLUG *14 TIMING CHAIN COVER OIL SEAL
*15 STRAIGHT PIN *16 CRANKSHAFT TIMING GEAR KEY
*17 CAMSHAFT TIMING VALVE ASSEMBLY *18 TIMING CHAIN COVER ASSEMBLY
*19 STUD BOLT *20 CHAIN DAMPER SPRING
*21 CHAIN TENSIONER PLATE *22 RING PIN
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
MP grease Adhesive 1324
* Precoated part Do not apply lubricants to the threaded parts

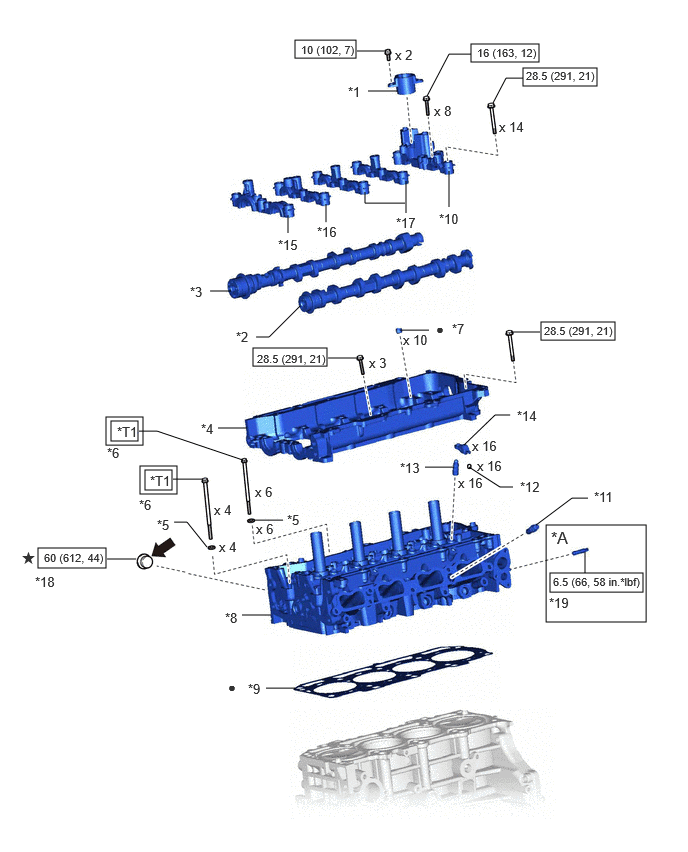

Fig 11: Engine Unit Replacement Components With Torque Specifications [08/2021 - ] (11 Of 12)
GTY1084582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/ Stud Bolt - -
*1 FUEL PUMP LIFTER GUIDE *2 CAMSHAFT
*3 NO. 2 CAMSHAFT *4 CAMSHAFT HOUSING SUB-ASSEMBLY
*5 PLATE WASHER *6 CYLINDER HEAD SET BOLT
*7 CAMSHAFT BEARING CAP SETTING RING PIN *8 CYLINDER HEAD SUB-ASSEMBLY
*9 CYLINDER HEAD GASKET *10 NO. 4 CAMSHAFT BEARING CAP
*11 PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY) *12 VALVE STEM CAP
*13 VALVE LASH ADJUSTER ASSEMBLY *14 NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY
*15 NO. 1 CAMSHAFT BEARING CAP *16 NO. 2 CAMSHAFT BEARING CAP
*17 NO. 3 CAMSHAFT BEARING CAP *18 NO. 3 STRAIGHT SCREW PLUG
*19 STUD BOLT - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
• Non-reusable part Adhesive 1324
* Precoated part - -
*T1 1st: 90 (918, 66)
2nd: Turn 90°
3rd: Turn 90°		 - -
Fig 12: Engine Unit Replacement Components With Torque Specifications [08/2021 - ] (12 Of 12)
GTY1026220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CRANKSHAFT POSITION SENSOR *2 ENGINE BALANCER ASSEMBLY
*3 ENGINE OIL LEVEL SENSOR *4 OIL FILTER SUB-ASSEMBLY
*5 OIL FILTER UNION *6 NO. 2 OIL PAN SUB-ASSEMBLY
*7 OIL PUMP ASSEMBLY *8 OIL PUMP BRACKET
*9 OIL STRAINER SUB-ASSEMBLY *10 REAR ENGINE OIL SEAL
*11 STIFFENING CRANKCASE ASSEMBLY *12 CYLINDER BLOCK SUB-ASSEMBLY
*13 OIL NOZZLE VALVE SUB-ASSEMBLY *14 STUD BOLT
*15 RING PIN *16 OIL PAN DRAIN PLUG
*17 GASKET *18 OIL STRAINER GASKET
*19 KNOCK CONTROL SENSOR *20 OIL PRESSURE AND TEMPERATURE SENSOR
*21 STRAIGHT SCREW PLUG *22 WIRE HARNESS CLAMP BRACKET
*23 CYLINDER BLOCK WATER JACKET SPACER *24 O-RING
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) N.m (kgf/cm, ft.lbf): Specified torque
• Non-reusable part Adhesive 1344
MP grease * Precoated part
