Components [08/2021 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

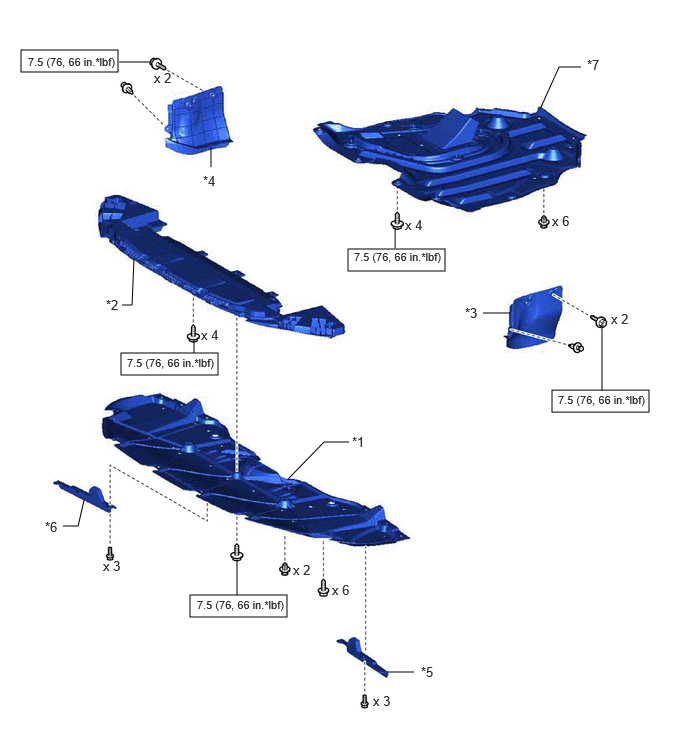

| *1 |
NO. 1 ENGINE UNDER COVER |
*2 |
FRONT LOWER BUMPER ABSORBER |
| *3 |
FRONT FENDER APRON SEAL LH |
*4 |
FRONT FENDER APRON SEAL RH |
| *5 |
FRONT WHEEL OPENING EXTENSION PAD LH |
*6 |
FRONT WHEEL OPENING EXTENSION PAD RH |
| *7 |
NO. 2 ENGINE UNDER COVER ASSEMBLY |
- |
- |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

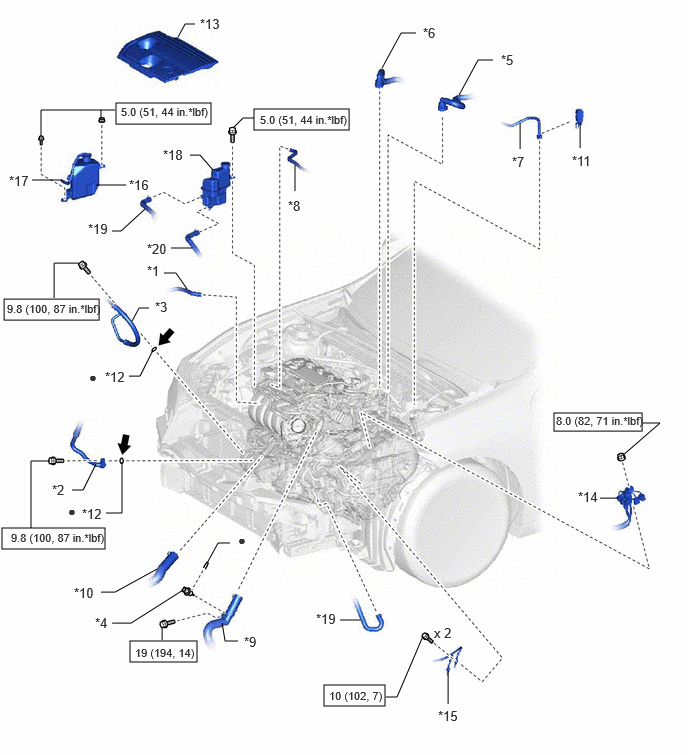

| *1 |
NO. 5 WATER BY-PASS HOSE |
*2 |
SUCTION HOSE |
| *3 |
NO. 1 COOLER REFRIGERANT DISCHARGE HOSE |
*4 |
NO. 2 ENGINE COOLANT TEMPERATURE SENSOR |
| *5 |
OUTLET HEATER HOSE |
*6 |
INLET HEATER HOSE |
| *7 |
FUEL TUBE SUB-ASSEMBLY |
*8 |
NO. 1 FUEL VAPOR FEED HOSE |
| *9 |
NO. 1 RADIATOR HOSE |
*10 |
NO. 2 RADIATOR HOSE |
| *11 |
EFI FUEL PIPE CLAMP |
*12 |
O-RING |
| *13 |
NO. 1 ENGINE COVER SUB-ASSEMBLY |
*14 |
WIRE HARNESS |
| *15 |
EARTH WIRE |
*16 |
RADIATOR RESERVE TANK ASSEMBLY |
| *17 |
NO. 6 WATER BY-PASS HOSE |
*18 |
INVERTER RESERVE TANK ASSEMBLY |
| *19 |
NO. 5 INVERTER COOLING HOSE |
*20 |
NO. 2 INVERTER COOLING HOSE |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
 |
Compressor oil ND-OIL 11 or equivalent |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *A |
w/ Suspension Tower Damper |
- |
- |
| *1 |
SUSPENSION TOWER DAMPER |
- |
- |
|
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

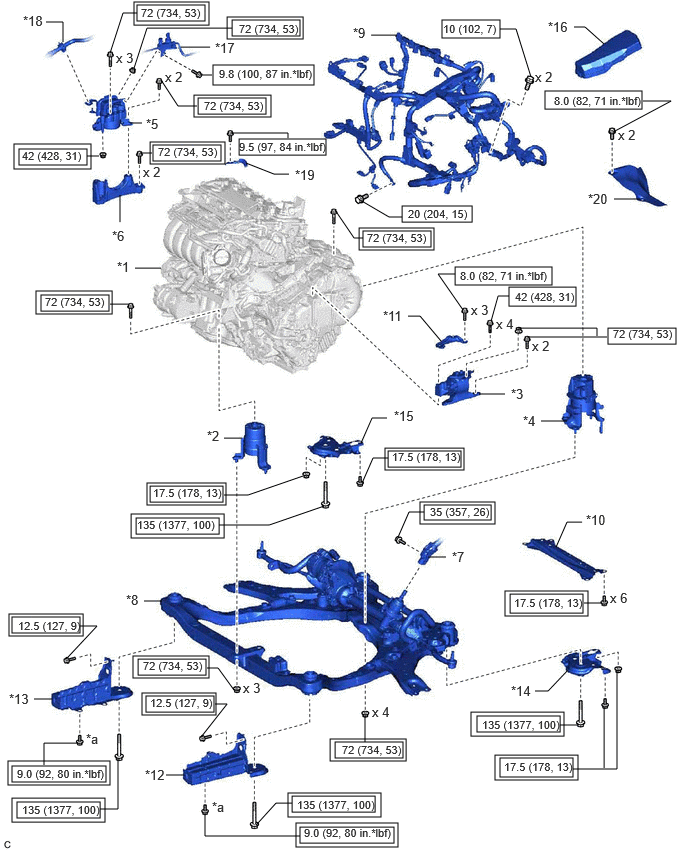

| *1 |
ENGINE ASSEMBLY WITH TRANSAXLE |
*2 |
FRONT ENGINE MOUNTING INSULATOR |
| *3 |
ENGINE MOUNTING INSULATOR LH |
*4 |
REAR ENGINE MOUNTING INSULATOR |
| *5 |
ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH |
*6 |
ENGINE MOUNTING SPACER |
| *7 |
STEERING INTERMEDIATE SHAFT ASSEMBLY |
*8 |
FRONT FRAME ASSEMBLY |
| *9 |
ENGINE WIRE |
*10 |
BODY MOUNTING PLATE |
| *11 |
ENGINE MOUNTING STAY LH |
*12 |
FRONT BUMPER EXTENSION SUB-ASSEMBLY LH |
| *13 |
FRONT BUMPER EXTENSION SUB-ASSEMBLY RH |
*14 |
FRONT SUSPENSION MEMBER BRACKET SUB-ASSEMBLY LH |
| *15 |
FRONT SUSPENSION MEMBER BRACKET SUB-ASSEMBLY RH |
*16 |
NO. 2 RELAY BLOCK COVER |
| *17 |
COOLER BRACKET |
*18 |
SUCTION HOSE |
| *19 |
NO. 2 EARTH WIRE |
*20 |
STEERING GEAR HEAT INSULATOR |
| *a |
w/o Suspension Tower Damper: x 2
w/ Suspension Tower Damper: x 1 |
- |
- |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
|
N.m (kgf/cm, ft.lbf): Specified torque |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

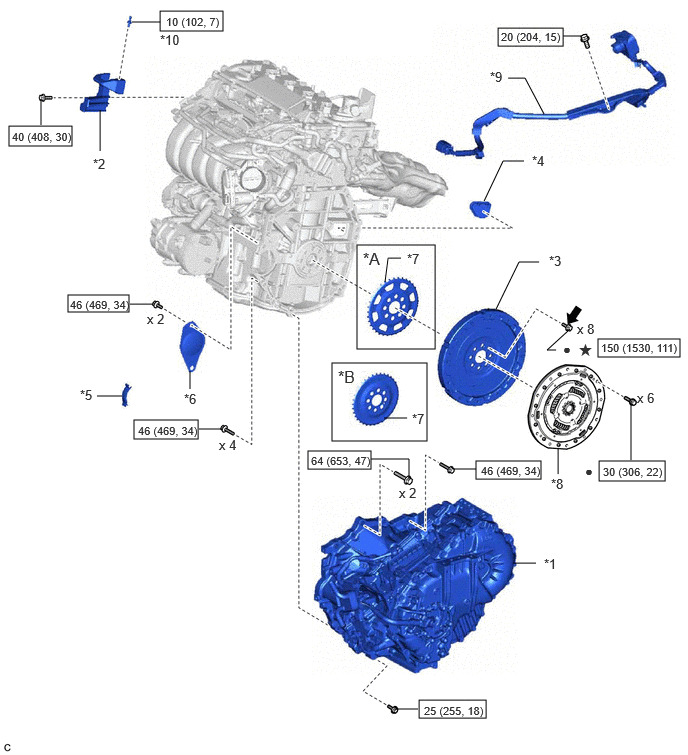

| *A |
Type A |
*B |
Type B |
| *1 |
HYBRID VEHICLE TRANSAXLE ASSEMBLY |
*2 |
FUEL DELIVERY GUARD |
| *3 |
FLYWHEEL SUB-ASSEMBLY |
*4 |
FLYWHEEL HOUSING UNDER COVER |
| *5 |
FLYWHEEL HOUSING SIDE COVER |
*6 |
STARTER HOLE INSULATOR |
| *7 |
NO. 1 CRANKSHAFT POSITION SENSOR PLATE |
*8 |
TRANSMISSION INPUT DAMPER ASSEMBLY |
| *9 |
HV AIR CONDITIONING WIRE |
*10 |
BOLT |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
|
Adhesive 1324 |
* |
Precoated part |
