DTC P0688-1F: ECM/PCM Power Relay Sense Circuit Intermittent [08/2020 - ]: Procedure

1. Confirm whether the auxiliary battery terminals have been disconnected recently.

   Result

   Result	Proceed to
   Terminals have been disconnected.	A
   Terminals have not been disconnected.	B

Result:

B

See step  5

Result:

A

See step  2

1. Turn the power switch on (READY) from off.
2. Confirm that the master warning light illuminates.

   Result

   Result	Proceed to
   Master warning light illuminates.	A
   Master warning light does not illuminate.	B

   NOTE:

   DTC P0688-1F may be stored after disconnecting and reconnecting the auxiliary battery terminals. If this happens, the DTC will not be output if the power switch is turned off and then on (READY) again. In this case, clear the DTCs to complete the inspection.

3. Turn the power switch off.

Result:

B

END

Result:

A

See step  3

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.
4. Read and record the DTCs and freeze frame data.

   Powertrain > Hybrid Control > Trouble Codes

5. Clear the DTCs and freeze frame data.

   Powertrain > Hybrid Control > Clear DTCs

6. Turn the power switch off and wait for 2 minutes or more.

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  4

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.
4. Check for DTCs.

   Powertrain > Hybrid Control > Trouble Codes

   Result

   Result	Proceed to
   DTC P0688-1F is output again.	A
   DTCs other than P0688-1F are also output.	B

5. Turn the power switch off.

Result:

B

GO TO DTC CHART (HYBRID CONTROL SYSTEM). Refer to  DIAGNOSTIC TROUBLE CODE CHART [08/2020 - 08/2021]  , or refer to  DIAGNOSTIC TROUBLE CODE CHART [08/2021 - ]

Result:

A

See step  5

1. Check the connection of the auxiliary battery terminal.

   OK

   The terminal is connected securely and there is no contact problem.

   Result

   Proceed to
   OK
   NG

Result:

NG

CONNECT SECURELY

Result:

OK

See step  6

See step  1

Result

Result:

NG

CONNECT SECURELY

Result:

OK

See step  7

1. Remove the IGCT relay from the No. 3 relay block.
2. Disconnect the A32 and A33 hybrid vehicle control ECU connectors.
3. Measure the resistance according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

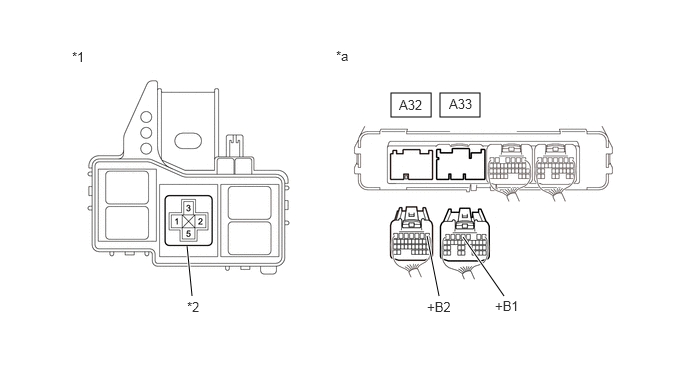

   *1	No. 3 Relay Block	*2	IGCT Relay Holder
   *a	Rear view of wire harness connector (to Hybrid Vehicle Control ECU)	-	-

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A33-4 (+B1) - 5 (IGCT relay holder)	Power switch off	Below 1 Ω
   A32-1 (+B2) - 5 (IGCT relay holder)	Power switch off	Below 1 Ω

4. Reconnect the A32 and A33 hybrid vehicle control ECU connectors.
5. Reinstall the IGCT relay.

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  8

1. Check for intermittent problems.

   Refer to CHECK FOR INTERMITTENT PROBLEMS [08/2020 - ]

   1. Check the connection and terminal contact pressure of the connectors and wire harnesses between the hybrid vehicle control ECU and the No. 3 relay block.
   2. When the power switch is on (READY), jiggle the connectors and wire harnesses between the hybrid vehicle control ECU and the No. 3 relay block.

   Result

   Result	Proceed to
   Problem symptom does not recur.	A
   Problem symptom recurs.	B

Result:

A

REPLACE HYBRID VEHICLE CONTROL ECU. Refer to  REMOVAL [06/2018 - 08/2021]  , or refer to  REMOVAL [08/2021 - 09/2022]  , or refer to  REMOVAL [09/2022 - ]

Result:

B

REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA
