Parts Location [08/2020 - ]: Illustration

WARNING: This page is about a different car, the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, and 2021 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

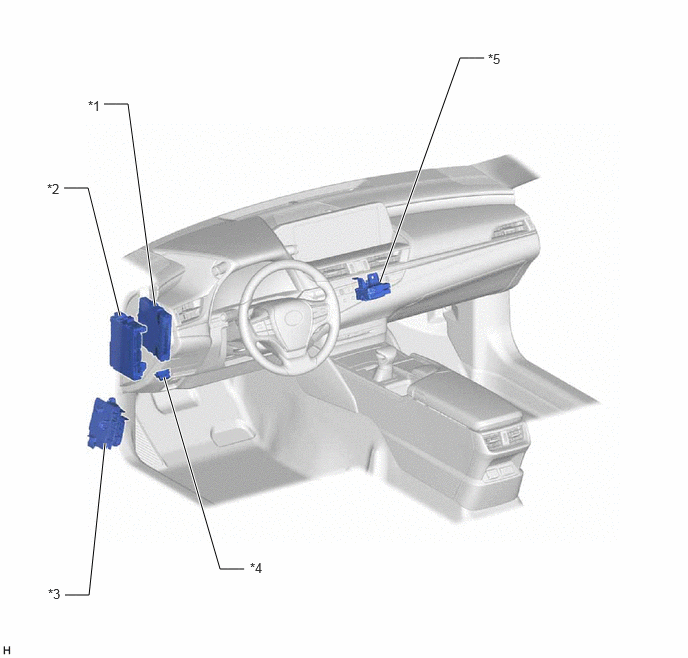

Fig 1: Hybrid Battery System (For Lithium-Ion Battery) Replacement Components (1 Of 4) [08/2020 - ]
GTY947853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 HYBRID VEHICLE CONTROL ECU *2 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU-B NO. 1 FUSE
*3 NO. 4 RELAY BLOCK
- IGCT NO. 2 FUSE
- PM-IGCT FUSE
- BATT FAN FUSE		 *4 DLC3
*5 NO. 3 RELAY BLOCK
- IGCT RELAY		 - -

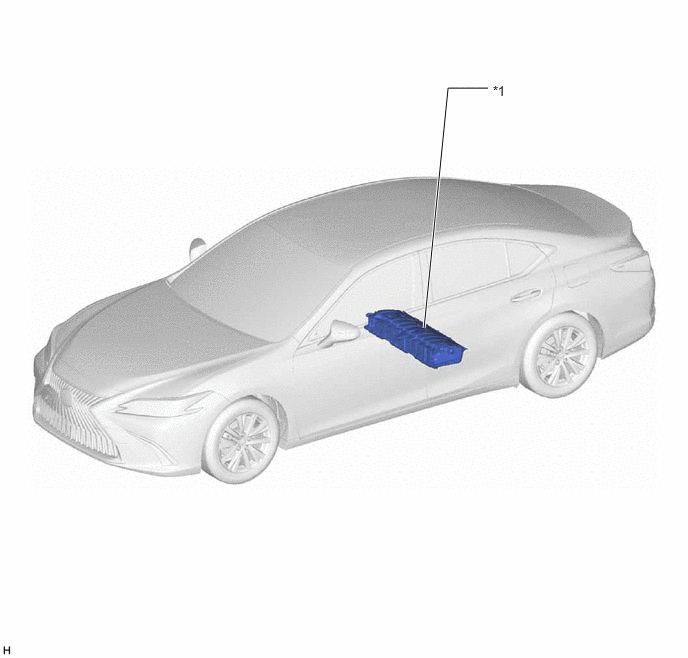

Fig 1: Hybrid Battery System (For Lithium-Ion Battery) Replacement Components (2 Of 4) [08/2020 - ]
GTY947270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 HV BATTERY - -

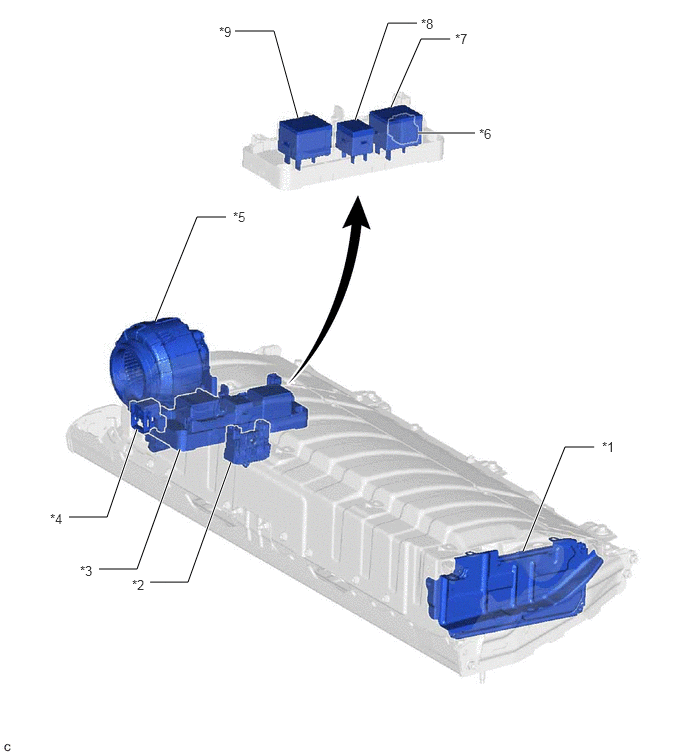

Fig 1: Hybrid Battery System (For Lithium-Ion Battery) Replacement Components (3 Of 4) [08/2020 - ]
GTY764782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 BATTERY ECU ASSEMBLY *2 HYBRID BATTERY TERMINAL BLOCK
*3 HV BATTERY JUNCTION BLOCK ASSEMBLY *4 SERVICE PLUG GRIP
*5 BATTERY COOLING BLOWER ASSEMBLY *6 BATTERY CURRENT SENSOR
*7 SMRB *8 SMRP
*9 SMRG - -

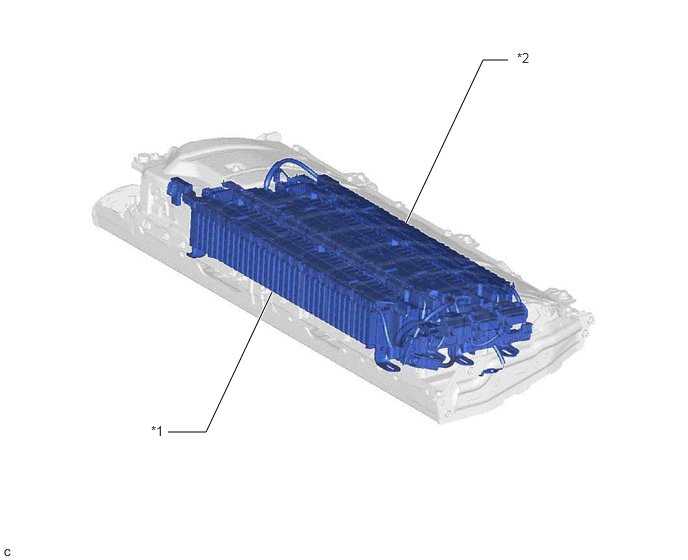

Fig 1: Hybrid Battery System (For Lithium-Ion Battery) Replacement Components (4 Of 4) [08/2020 - ]
GTY765618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 1 HV SUPPLY STACK SUB-ASSEMBLY *2 NO. 2 HV SUPPLY STACK SUB-ASSEMBLY
