Removal [09/2022 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 1

  3. REMOVE FRONT ENGINE MOUNTING INSULATOR

    Refer to REMOVAL [08/2020 - ]

  4. REMOVE FLYWHEEL HOUSING SIDE COVER

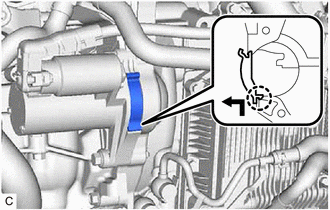

    1. Disengage the claw as shown in the illustration to remove the flywheel housing side cover.
      GTY948015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE STARTER ASSEMBLY

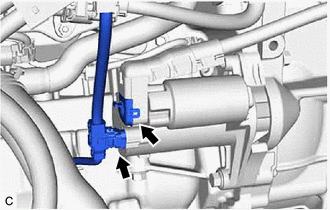

    1. Disconnect the starter assembly connector.
      GTY958495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Open the terminal cap.
    3. Remove the nut and disconnect the No. 2 engine wire from terminal 30.
      GTY957510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

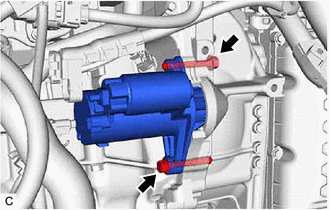

    4. Remove the 2 bolts and starter assembly from the cylinder block sub-assembly.
      GTY958479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
