Reassembly [08/2020 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL STARTER CENTER BEARING CLUTCH SUB-ASSEMBLY

Apply high-temperature grease to the pinion drive lever.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

High-temperature Grease

HINT:

Apply approximately 0.1 g of high-temperature grease to each section.

Align the cutout of the starter drive housing assembly with the protrusion of the starter center bearing clutch sub-assembly and install the starter center bearing clutch sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Cutout
*b	Protrusion

Install the rubber seal to the starter drive housing assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL STARTER BRUSH HOLDER ASSEMBLY

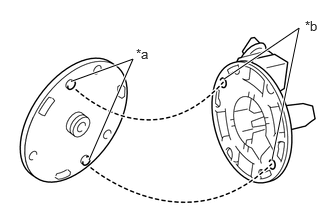

Install the starter commutator end frame assembly to the starter brush holder assembly as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Protrusion
*b	Depression

HINT:

If the parts are not aligned correctly, the through bolt cannot be attached.

Spread the brushes on the starter brush holder assembly, and install the starter armature assembly to the starter brush holder assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL STARTER ARMATURE ASSEMBLY

Install the starter yoke assembly while holding down the starter armature assembly and starter brush holder assembly with the handle of a hammer.

HINT:

The starter armature assembly will be attracted by the magnetic field of the starter yoke assembly. Hold the starter armature assembly with the handle of the hammer.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Starter Yoke Assembly
*2	Starter Brush Holder Assembly
*3	Starter Armature Assembly
*a	Hammer

INSTALL STARTER YOKE ASSEMBLY

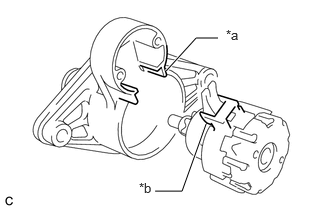

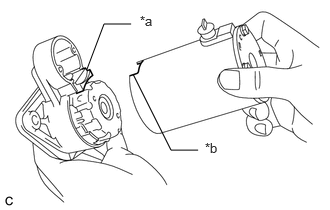

Align the cutout of the starter yoke assembly with the protrusion of the starter center bearing clutch sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Protrusion
*b	Cutout

Install the starter yoke assembly with the 3 through bolts.

Torque: 3.0 N.m (31 kgf/cm, 27 in.lbf)

INSTALL MAGNET STARTER SWITCH ASSEMBLY

Hang the hook of the magnet starter switch assembly on the pinion drive lever.

*a	Hook
*b	Pinion Drive Lever

Push down the rear of the magnet starter switch assembly and connect it to terminal C.

*a	Terminal C

NOTE:

Connect the magnet starter switch assembly securely to terminal C.
Check that the parts are free of foreign matter, oil or grease.

Install the magnet starter switch assembly with the 2 bolts.

Torque: 3.0 N.m (31 kgf/cm, 27 in.lbf)
