Inspection [08/2020 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT STARTER ASSEMBLY

WARNING:

As a large electric current passes through the cable during this inspection, a thick cable must be used. If not, the cable may become hot and cause injury.

NOTE:

Perform each of the following tests within 3 to 5 seconds to prevent the coil from burning out.

Perform a pull-in test.

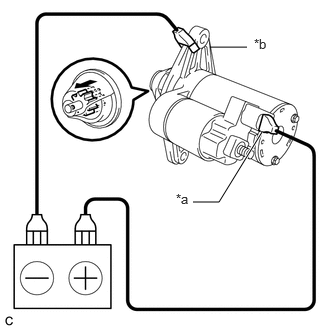

Connect a battery to the magnet starter switch assembly as shown in the illustration. Check that the clutch pinion gear moves outward.

If the clutch pinion gear does not move outward, replace the magnet starter switch assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Terminal 50
*b	Starter Body
	Moves outward

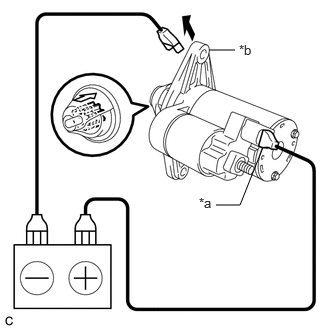

Perform a return test.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Terminal 50
*b	Starter Body
	Disconnect
	Returns inward

While maintaining the battery connections of the pull-in test, disconnect the negative (-) lead from the starter body. Check that the clutch pinion gear returns inward.
If the clutch pinion gear does not return inward, replace the magnet starter switch assembly.

Perform a no-load performance test.

Secure the starter assembly in a vise between aluminum plates.
NOTE:
Ensure that the starter assembly is secured in the vise to prevent it from falling out.

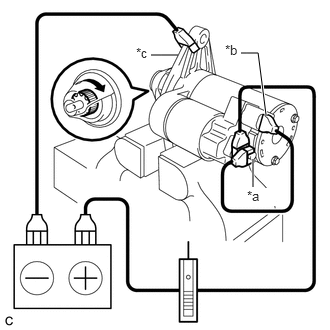

Connect the battery and an ammeter to the starter assembly as shown in the illustration.

NOTE:

Do not allow any lead to get caught as the clutch pinion gear operates.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Terminal 30
*b	Terminal 50
*c	Starter Body
	Rotates

Check that the starter assembly operates smoothly and steadily while the clutch pinion gear is moving outward.

Measure the current according to the value(s) in the table below.

Standard Current

Tester Connection	Condition	Specified Condition
Battery positive (+) terminal - Terminal 30 - Terminal 50	11.5 V	Below 90 A

If the result is not as specified, repair or replace the starter assembly.

INSPECT MAGNET STARTER SWITCH ASSEMBLY

Check the plunger.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Plunger

Push in the plunger and check that it returns quickly to its original position.
NOTE:
To avoid damaging the inside of the magnet starter switch assembly, do not release the plunger quickly.

If the plunger does not operate as specified, replace the magnet starter switch assembly.

Check the holding coil for an open circuit.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Magnet Starter Switch Assembly Body
*b	Terminal 50

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Condition	Specified Condition
Terminal 50 -Magnet starter switch assembly body	Always	Below 2 Ω

If the result is not as specified, replace the magnet starter switch assembly.

INSPECT STARTER ARMATURE ASSEMBLY

Check the commutator appearance.
If the surface is dirty or burnt, restore it with sandpaper (400-grit) or on a lathe.

Check the commutator for an open circuit.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Segment

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Condition	Specified Condition
Segment - Segment	Always	Below 1 Ω

If the result is not as specified, replace the starter armature assembly.

Check the commutator for a short circuit.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Segment
*b	Starter Armature Core

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Condition	Specified Condition
Segment - Starter armature core	Always	10 kΩ or higher

If the result is not as specified, replace the starter armature assembly.

Check the commutator for runout.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Armature Shaft

Place the armature shaft on V-blocks.
Using a dial indicator, measure the runout.
Maximum Runout

0.05 mm (0.00197 in.)

If the runout is greater than the maximum, replace the starter armature assembly.

Using a vernier caliper, measure the commutator diameter.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Diameter

Standard Diameter

25.0 mm (0.984 in.)

Minimum Diameter

24.0 mm (0.945 in.)

If the diameter is less than the minimum, replace the starter armature assembly.

Check that the undercut portion between the segments is free of foreign matter and measure its depth.

*a	Undercut depth

Standard Undercut Depth

0.7 mm (0.0276 in.)

Minimum Undercut Depth

0.2 mm (0.00787 in.)

If the undercut depth is less than the minimum, replace the starter armature assembly.

INSPECT STARTER BRUSH HOLDER ASSEMBLY

Check the brush length.

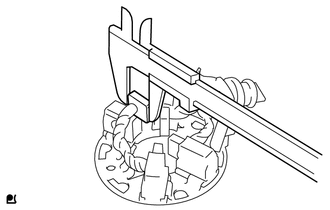

Using a vernier caliper, measure the brush length.

Standard Length

11.6 mm (0.457 in.)

Minimum Length

7.6 mm (0.299 in.)

If the length is less than the minimum, replace the starter brush holder assembly.

INSPECT STARTER CENTER BEARING CLUTCH SUB-ASSEMBLY

Install the starter armature assembly to the starter center bearing clutch sub-assembly.

Hold the starter armature assembly, rotate the clutch pinion gear clockwise, and check that it turns freely. Try to rotate the clutch pinion gear counterclockwise and check that it locks.

If the clutch pinion gear does not operate as specified, replace the starter center bearing clutch sub-assembly.

*a	Free
*b	Lock
