Components [08/2020 - ]
WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

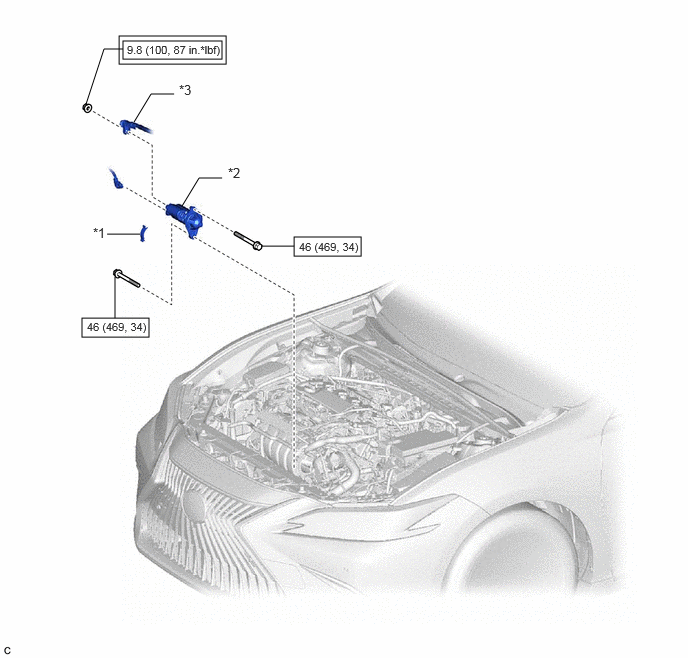

| *1 |
FLYWHEEL HOUSING SIDE COVER |
*2 |
STARTER ASSEMBLY |
| *3 |
NO. 2 ENGINE WIRE |
- |
- |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

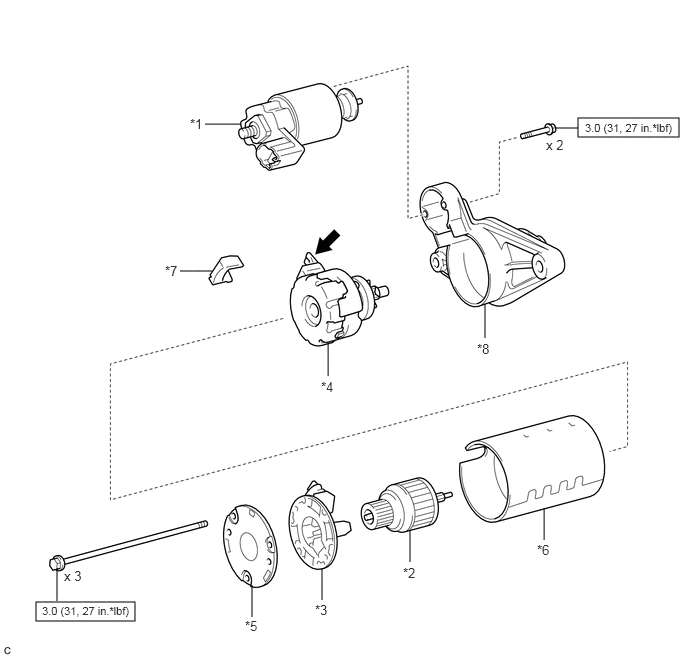

| *1 |
MAGNET STARTER SWITCH ASSEMBLY |
*2 |
STARTER ARMATURE ASSEMBLY |
| *3 |
STARTER BRUSH HOLDER ASSEMBLY |
*4 |
STARTER CENTER BEARING CLUTCH SUB-ASSEMBLY |
| *5 |
STARTER COMMUTATOR END FRAME ASSEMBLY |
*6 |
STARTER YOKE ASSEMBLY |
| *7 |
RUBBER SEAL |
*8 |
STARTER DRIVE HOUSING ASSEMBLY |
|
N.m (kgf/cm, ft.lbf): Specified torque |
 |
High-temperature Grease |
