Parts Location [09/2022 - ]: Illustration

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 350, 2024 Lexus ES 300h, 2024 Lexus ES 250, 2023 Lexus ES 350, and 2023 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

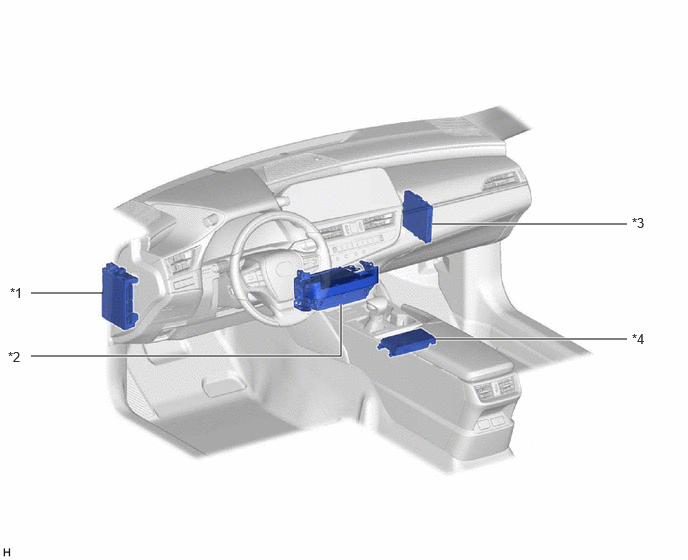

Fig 1: Wireless Charging System Replacement Components [09/2022 - ]
GTY1135231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU-ACC FUSE
- ECU-DCC NO. 2 FUSE		 *2 RADIO RECEIVER ASSEMBLY
*3 CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) *4 MOBILE WIRELESS CHARGER CRADLE ASSEMBLY
