Installation [06/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL SERVICE PLUG GRIP
    WARNING:

    Be sure to wear insulated gloves.

    NOTE:

    Before installing the service plug grip, check that no parts or tools remain and that the high voltage terminals and connectors are connected securely.

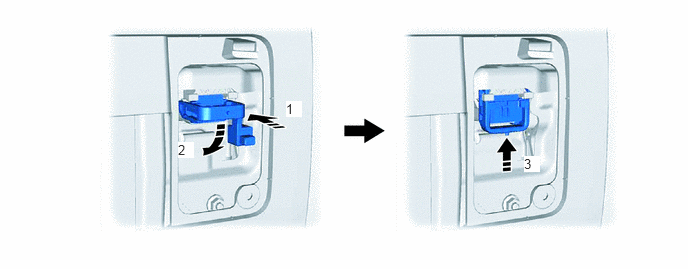

    1. While wearing insulated gloves, and temporarily install the service plug grip as indicated by the arrow (1) shown in the illustration.
      GTY745114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Rotate the handle of the service plug grip 90° toward the HV battery and slide it in the direction indicated by the arrow (3) shown in the illustration until a click sound is heard to install the service plug grip.
  2. INSTALL BATTERY SERVICE HOLE COVER

    See step  2

  3. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Refer to PROCEDURE - Step 2
