Inspection [06/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT HV BATTERY JUNCTION BLOCK ASSEMBLY
    1. Inspect SMRB:
      1. Measure the resistance according to the value(s) in the table below.

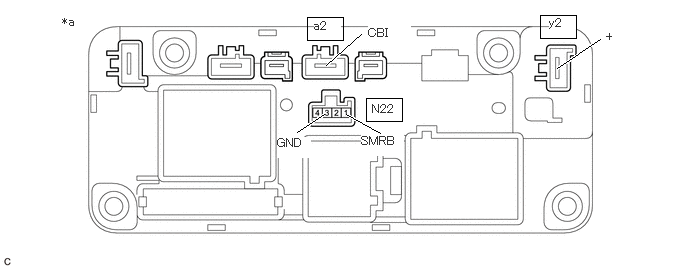

        GTY804470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (HV Battery Junction Block Assembly)        		 - -

        Standard Resistance

        Tester Connection Condition Specified Condition
        y2-1 (+) - a2-1 (CBI) Auxiliary battery voltage not applied between terminals N22-1 (SMRB) and N22-3 (GND) 10 kΩ or higher
        y2-1 (+) - a2-1 (CBI) Auxiliary battery voltage applied between terminals N22-1 (SMRB) and N22-3 (GND) Below 1 Ω
      2. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Denso Made

        Tester Connection Condition Specified Condition
        N22-1 (SMRB) - N22-3 (GND) -40 to 80°C (-40 to 176°F) 25.0 to 59.0 Ω

        Panasonic Made

        Tester Connection Condition Specified Condition
        N22-1 (SMRB) - N22-3 (GND) -40 to 80°C (-40 to 176°F) 20.6 to 40.8 Ω

        If the result is not as specified, replace the HV battery junction block assembly.

    2. Inspect SMRG:
      1. Measure the resistance according to the value(s) in the table below.

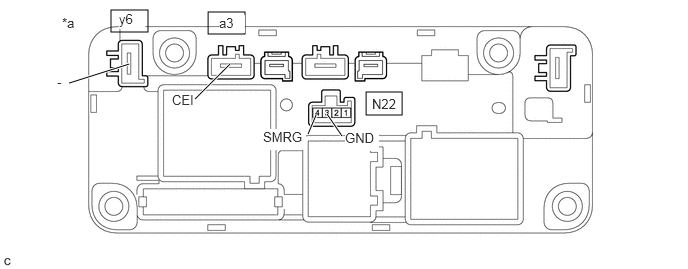

        GTY804480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (HV Battery Junction Block Assembly)        		 - -

        Standard Resistance

        Tester Connection Condition Specified Condition
        y6-1 (-) - a3-1 (CEI) Auxiliary battery voltage not applied between terminals N22-4 (SMRG) and N22-3 (GND) 10 kΩ or higher
        y6-1 (-) - a3-1 (CEI) Auxiliary battery voltage applied between terminals N22-4 (SMRG) and N22-3 (GND) Below 1 Ω
      2. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Denso Made

        Tester Connection Condition Specified Condition
        N22-4 (SMRG) - N22-3 (GND) -40 to 80°C (-40 to 176°F) 25.0 to 59.0 Ω

        Panasonic Made

        Tester Connection Condition Specified Condition
        N22-4 (SMRG) - N22-3 (GND) -40 to 80°C (-40 to 176°F) 20.6 to 40.8 Ω

        If the result is not as specified, replace the HV battery junction block assembly.

    3. Inspect SMRP:
      1. Measure the resistance according to the value(s) in the table below.

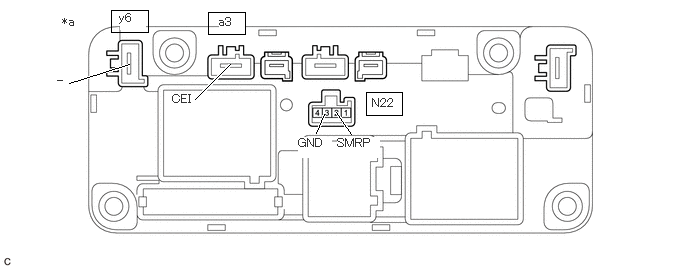

        GTY804467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Component without harness connected
        (HV Battery Junction Block Assembly)        		 - -

        Standard Resistance

        Tester Connection Condition Specified Condition
        y6-1 (-) - a3-1 (CEI) Auxiliary battery voltage not applied between terminals N22-2 (SMRP) and N22-3 (GND) 10 kΩ or higher
        Auxiliary battery voltage applied between terminals N22-2 (SMRP) and N22-3 (GND) 24.3 to 29.7 Ω
      2. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        N22-2 (SMRP) - N22-3 (GND) -40 to 80°C (-40 to 176°F) 140 to 290 Ω

        If the result is not as specified, replace the HV battery junction block assembly.
