Components [06/2018 - ]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: HV Relay Assembly Replacement Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

BATTERY SERVICE HOLE COVER

SERVICE PLUG GRIP

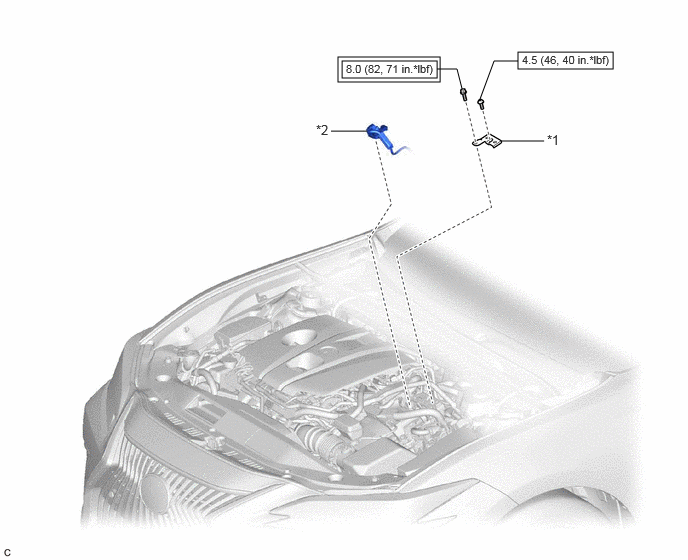

Fig 2: HV Relay Assembly Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CONNECTOR COVER ASSEMBLY	*2	ENGINE ROOM MAIN WIRE
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque

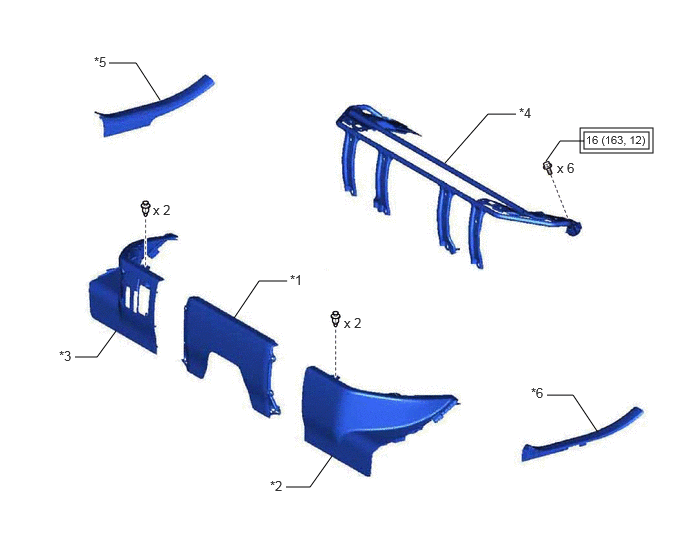

Fig 3: HV Relay Assembly Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	REAR UNDER COVER	*2	REAR UNDER SIDE COVER LH
*3	REAR UNDER SIDE COVER RH	*4	REAR SEAT CUSHION LEG SUB-ASSEMBLY
*5	REAR DOOR SCUFF PLATE RH	*6	REAR DOOR SCUFF PLATE LH
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

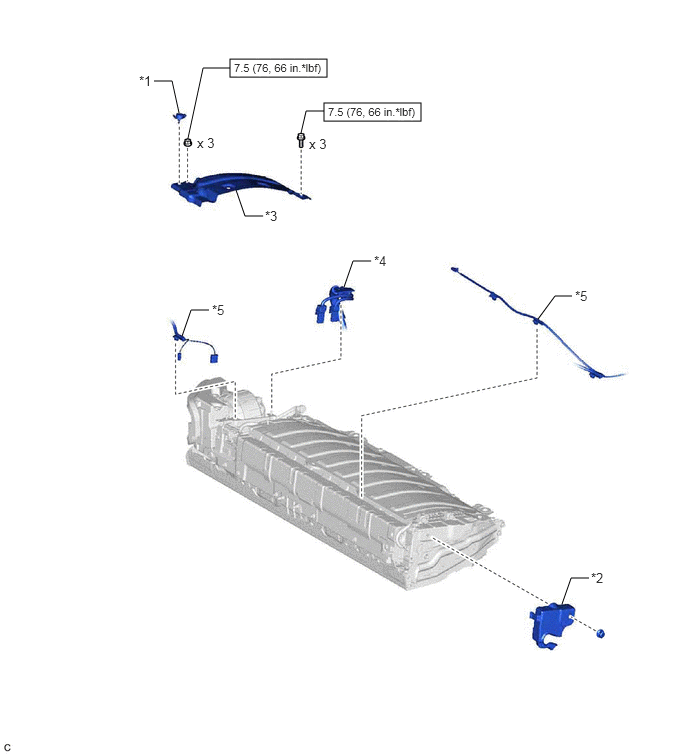

Fig 4: HV Relay Assembly Replacement Components With Torque Specifications (4 Of 5)

*1	BATTERY COVER LOCK STRIKER	*2	NO. 1 HYBRID BATTERY EXHAUST DUCT
*3	NO. 1 HV BATTERY COVER PANEL RH	*4	HV FLOOR UNDER WIRE
*5	FLOOR WIRE	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

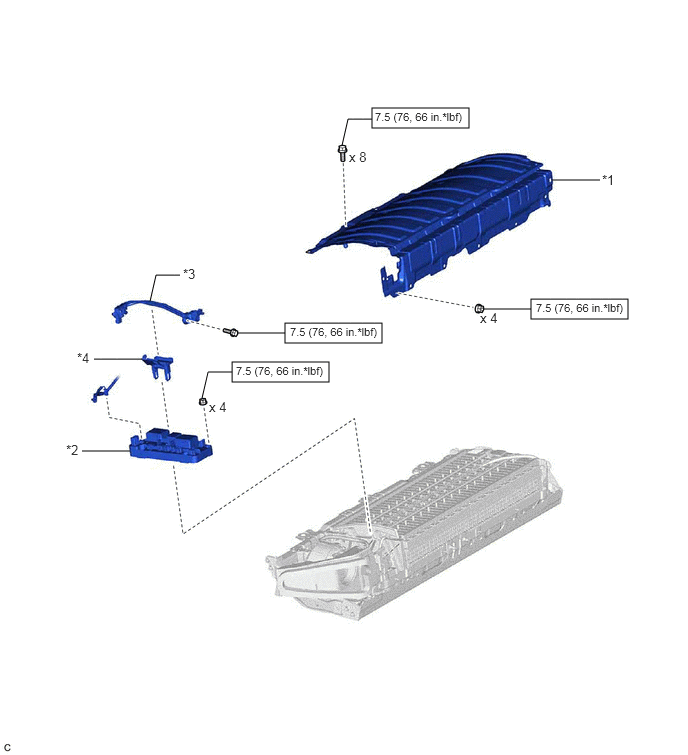

Fig 5: HV Relay Assembly Replacement Components With Torque Specifications (5 Of 5)

*1	UPPER HV BATTERY COVER SUB-ASSEMBLY	*2	HV BATTERY JUNCTION BLOCK ASSEMBLY
*3	ELECTRIC VEHICLE BATTERY PLUG ASSEMBLY	*4	WIRING HARNESS PROTECTOR
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
