Components [08/2020 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

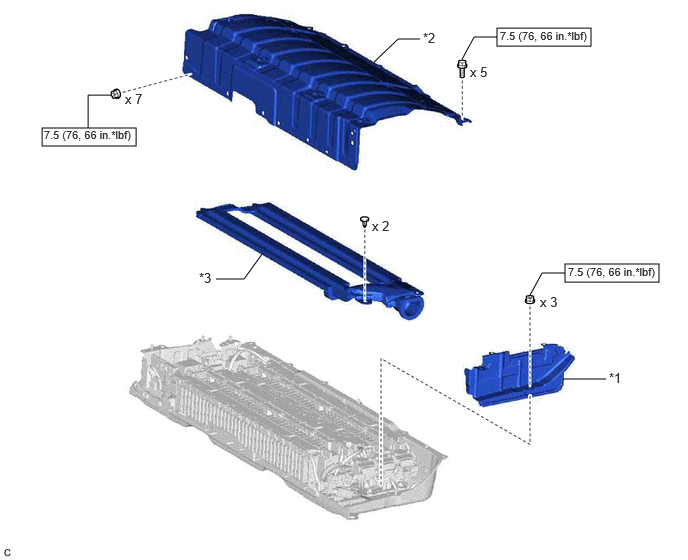

Fig 1: HV Battery Stack (For Lithium-Ion Battery) Replacement Components With Torque Specifications (1 Of 2)
| *1 | BATTERY ECU ASSEMBLY | *2 | UPPER HV BATTERY COVER SUB-ASSEMBLY |
| *3 | NO. 1 HV BATTERY HOSE | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

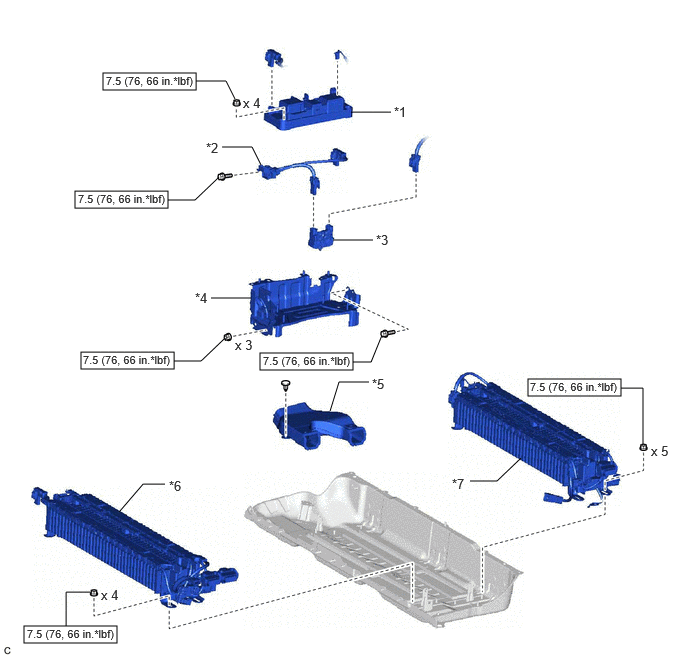

Fig 2: HV Battery Stack (For Lithium-Ion Battery) Replacement Components With Torque Specifications (2 Of 2)
| *1 | HV BATTERY JUNCTION BLOCK ASSEMBLY | *2 | ELECTRIC VEHICLE BATTERY PLUG ASSEMBLY |
| *3 | HYBRID BATTERY TERMINAL BLOCK | *4 | NO. 2 HYBRID BATTERY SHIELD SUB-ASSEMBLY |
| *5 | NO. 1 HV BATTERY INTAKE DUCT LH | *6 | NO. 1 HV SUPPLY STACK SUB-ASSEMBLY |
| *7 | NO. 2 HV SUPPLY STACK SUB-ASSEMBLY | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
