Installation [06/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL HYBRID BATTERY TERMINAL BLOCK
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

    1. Connect the 2 hybrid battery terminal block connectors.
      NOTE:

      Make sure that the connectors are connected securely.

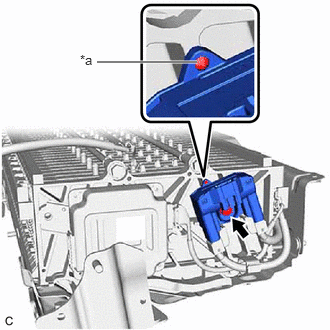

    2. Install the hybrid battery terminal block to the HV battery with the bolt.
      GTY757041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Pin

      Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

      NOTE:

      Make sure to align the hole of the hybrid battery terminal block with the pin.

  2. INSTALL NO. 1 HV BATTERY SHIELD PANEL

    Refer to PROCEDURE - Step 2

  3. INSTALL UPPER HV BATTERY COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  4. INSTALL HV BATTERY

    Refer to INSTALLATION [06/2018 - ]
