Installation [08/2020 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FLOOR UNDER WIRE
    WARNING:

    Be sure to wear insulated gloves.

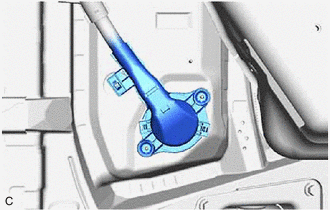

    1. Insert the HV floor under wire into the floor panel hole and engage the grommet.
      GTY787030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

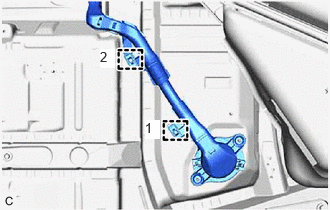

    2. Install 2 new clamps in the order shown in the illustration.
      Fig 1: HV Floor Under Wire Clamps Tightening Sequence [08/2020 - ]
      GTY825967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

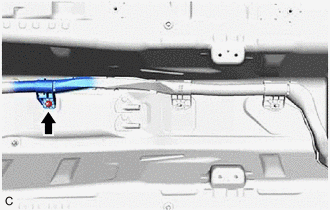

    3. Install the nut.

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

      GTY787045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

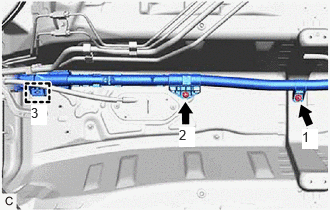

    4. Install the 2 nuts and a new clamp in the order shown in the illustration.
      Fig 2: Clamp Nuts Tightening Sequence [08/2020 - ]
      GTY778580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

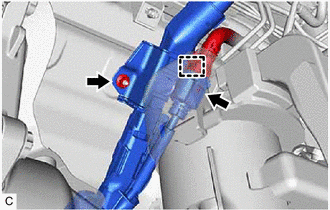

    5. Install the nut.

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

      GTY787033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Connect the HV floor under wire connector.
    7. Engage the clamp.

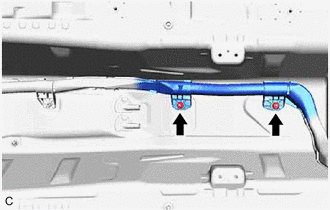

    8. Install the 2 nuts.

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

      GTY787047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

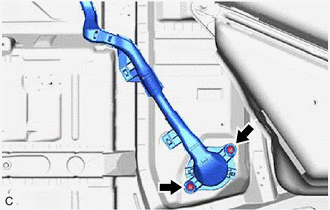

    9. Install the HV floor under wire with the 2 nuts.
      GTY829889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

  2. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Connect the transmission control cable assembly to the vehicle body with the 2 nuts.

      Torque: 6.0 N.m (61 kgf/cm, 53 in.lbf)

  3. INSTALL CENTER NO. 2 FLOOR HEAT INSULATOR
    1. Install the center No. 2 floor heat insulator with the 3 nuts.

      Torque: 5.0 N.m (51 kgf/cm, 44 in.lbf)

  4. INSTALL NO. 1 FLOOR UNDER COVER

    Refer to PROCEDURE - Step 9 [08/2020 - 09/2022] , or refer to PROCEDURE - Step 9 [09/2022 - ]

  5. INSTALL EXHAUST MANIFOLD

    Refer to INSTALLATION [06/2018 - ]

  6. INSTALL FRONT EXHAUST PIPE ASSEMBLY

    Refer to INSTALLATION [06/2018 - ]

  7. CONNECT FLOOR UNDER WIRE
    WARNING:

    Be sure to wear insulated gloves.

    1. Connect the floor wire connector.
    2. Connect the shield ground to the HV battery.
    3. Connect the 2 HV battery junction block assembly connectors.
      NOTE:

      Make sure that the connectors are connected securely.

  8. INSTALL NO. 1 HV BATTERY COVER PANEL RH
  9. INSTALL REAR SEAT CUSHION LEG SUB-ASSEMBLY

    See step  4

  10. INSTALL REAR UNDER COVER

    See step  5

  11. INSTALL REAR UNDER SIDE COVER LH

    See step  6

  12. INSTALL REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 29

  13. INSTALL REAR UNDER SIDE COVER RH

    See step  8

  14. INSTALL REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  15. INSTALL REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 4 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 4 [08/2021 - ]

  16. INSTALL REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 5 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 5 [08/2021 - ]

  17. CONNECT FLOOR UNDER WIRE

    Refer to PROCEDURE - Step 14

  18. CONNECT ENGINE ROOM MAIN WIRE
    WARNING:

    Be sure to wear insulated gloves.

    NOTE:

    Do not allow any foreign matter or water to enter the inverter with converter assembly.

    1. Connect the inverter with converter assembly connector and move the lock lever to lock it.
      GTY760952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not touch the waterproof seal or terminals of the connectors.
      • To prevent damage due to static electricity, do not touch the terminals of the disconnected connectors.
      • Do not damage the terminals, connector housing or inverter with converter assembly when connecting the connectors.
  19. INSTALL SERVICE PLUG GRIP

    Refer to INSTALLATION [06/2018 - ]

  20. INSPECT FOR EXHAUST GAS LEAK

    If gas is leaking, tighten the areas necessary to stop the leak. Replace damaged parts as necessary.

    1. Perform "Inspection After Repair" after repairing an exhaust gas leak.

      Refer to INITIALIZATION [08/2020 - 08/2021] , or refer to INITIALIZATION [08/2021 - ]
