Removal [08/2020 - 08/2021]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE SERVICE PLUG GRIP

    Refer to REMOVAL [08/2020 - 08/2021]

  2. DISCONNECT ENGINE ROOM MAIN WIRE

    See step  3

  3. REMOVE CONNECTOR COVER ASSEMBLY

    Refer to PROCEDURE - Step 10

  4. CHECK TERMINAL VOLTAGE

    Refer to PROCEDURE - Step 11

  5. INSTALL CONNECTOR COVER ASSEMBLY

    Refer to PROCEDURE - Step 6

  6. CONNECT ENGINE ROOM MAIN WIRE

    See step  18

  7. REMOVE REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 3

  8. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 5

  9. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 9

  10. REMOVE REAR UNDER SIDE COVER LH

    See step  4

  11. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  12. REMOVE REAR UNDER SIDE COVER RH

    See step  6

  13. REMOVE REAR UNDER COVER

    See step  7

  14. REMOVE REAR SEAT CUSHION LEG SUB-ASSEMBLY

    See step  8

  15. REMOVE NO. 1 HV BATTERY COVER PANEL RH

    Refer to PROCEDURE - Step 9

  16. DISCONNECT HV FLOOR UNDER WIRE

    Refer to PROCEDURE - Step 10

  17. DISCONNECT FLOOR WIRE

    Refer to PROCEDURE - Step 11

  18. REMOVE HV BATTERY JUNCTION BLOCK ASSEMBLY
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

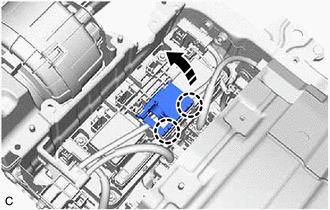

    1. Disengage the 2 claws and open the wiring harness protector.
      GTY773726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

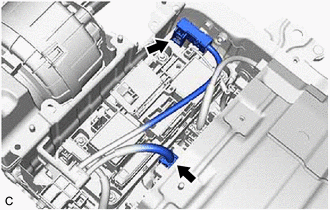

    2. Disconnect the HV battery junction block assembly connector.
      GTY764145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Insulate the disconnected high-voltage connector with insulating tape.

    3. Disconnect the hybrid battery terminal block connector.
      NOTE:

      Insulate the disconnected high-voltage connector with insulating tape.

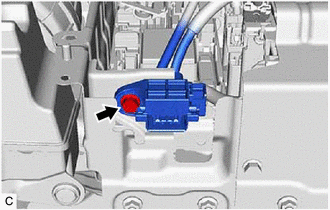

    4. Remove the bolt and electric vehicle battery plug assembly from the HV battery.
      GTY773737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

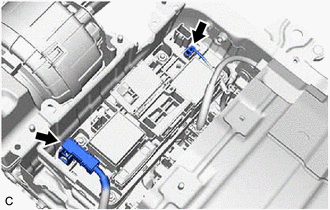

    5. Disconnect the 2 HV battery junction block assembly connectors.
      GTY764151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Insulate the disconnected high-voltage connectors with insulating tape.

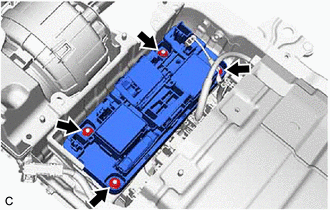

    6. Remove the 4 nuts and HV battery junction block assembly from the HV battery.
      NOTE:

      If the HV battery junction block assembly has been struck or dropped, replace it with a new one.

      GTY764147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE HYBRID BATTERY TERMINAL BLOCK
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

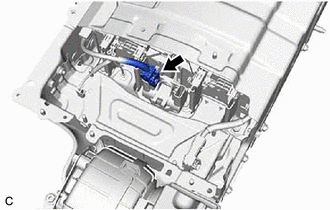

    1. Disconnect the hybrid battery terminal block connector.
      GTY764146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Insulate the disconnected high-voltage connector with insulating tape.

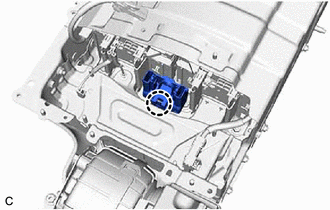

    2. Disengage the claw to remove the hybrid battery terminal block from the HV battery.
      GTY773736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
