Components [06/2018 - ]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

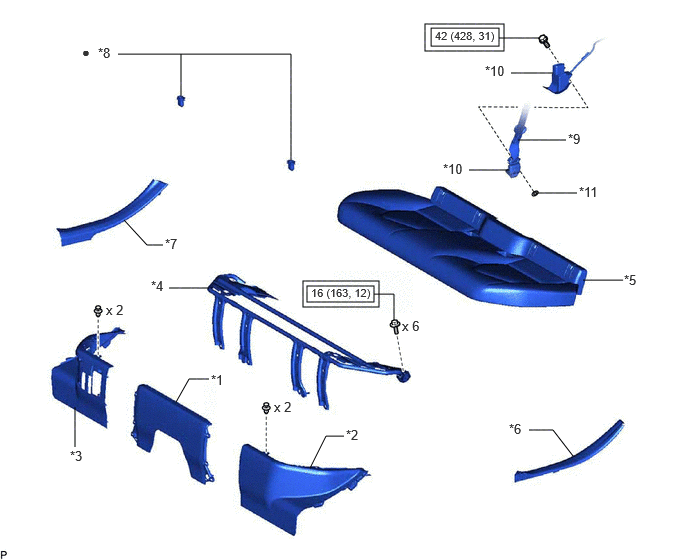

Fig 1: Battery Blower Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	REAR UNDER COVER	*2	REAR UNDER SIDE COVER LH
*3	REAR UNDER SIDE COVER RH	*4	REAR SEAT CUSHION LEG SUB-ASSEMBLY
*5	REAR SEAT CUSHION ASSEMBLY	*6	REAR DOOR SCUFF PLATE LH
*7	REAR DOOR SCUFF PLATE RH	*8	REAR SEAT CUSHION LOCK HOOK
*9	REAR CENTER SEAT OUTER BELT ASSEMBLY	*10	REAR SEAT INNER BELT ASSEMBLY RH
*11	WASHER	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	•	Non-reusable part

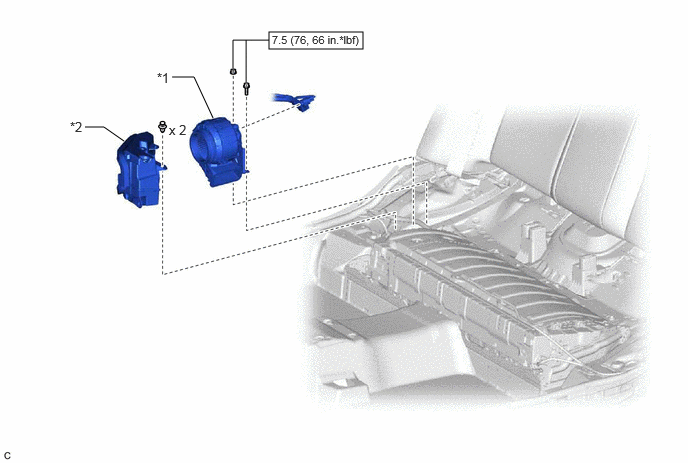

Fig 2: Battery Blower Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	BATTERY COOLING BLOWER ASSEMBLY	*2	NO. 1 HYBRID BATTERY INTAKE DUCT
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

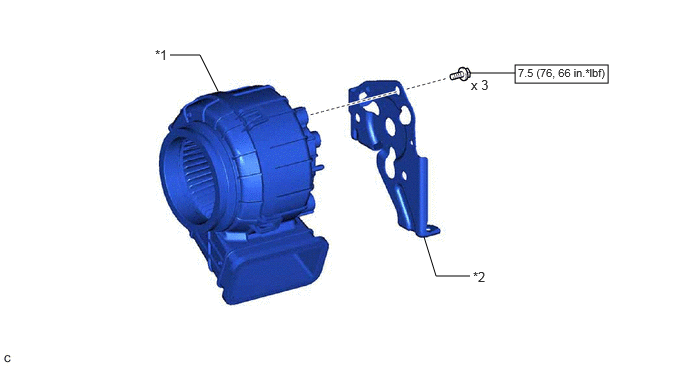

Fig 3: Battery Blower Replacement Components With Torque Specifications (3 Of 3)

*1	BATTERY COOLING BLOWER ASSEMBLY	*2	BATTERY COOLING BLOWER BRACKET
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
