Removal [08/2021 - 09/2022]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE SERVICE PLUG GRIP

    Refer to REMOVAL [08/2021 - 09/2022]

  2. DISCONNECT ENGINE ROOM MAIN WIRE

    See step  3

  3. REMOVE CONNECTOR COVER ASSEMBLY

    Refer to PROCEDURE - Step 10

  4. CHECK TERMINAL VOLTAGE

    Refer to PROCEDURE - Step 11

  5. INSTALL CONNECTOR COVER ASSEMBLY

    Refer to PROCEDURE - Step 6

  6. CONNECT ENGINE ROOM MAIN WIRE

    See step  18

  7. REMOVE REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 3

  8. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 5

  9. REMOVE REAR DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 9

  10. REMOVE REAR UNDER SIDE COVER LH

    See step  4

  11. REMOVE REAR DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

  12. REMOVE REAR UNDER SIDE COVER RH

    See step  6

  13. REMOVE REAR UNDER COVER

    See step  7

  14. REMOVE REAR SEAT CUSHION LEG SUB-ASSEMBLY

    See step  8

  15. REMOVE NO. 1 HV BATTERY COVER PANEL RH

    Refer to PROCEDURE - Step 9

  16. REMOVE ELECTRIC VEHICLE BATTERY PLUG ASSEMBLY
    WARNING:

    Be sure to wear insulated gloves and protective goggles.

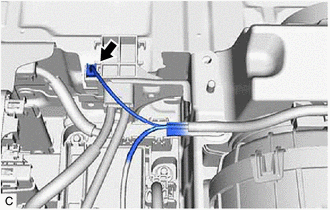

    1. Disconnect the electric vehicle battery plug assembly connector.
      GTY764136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

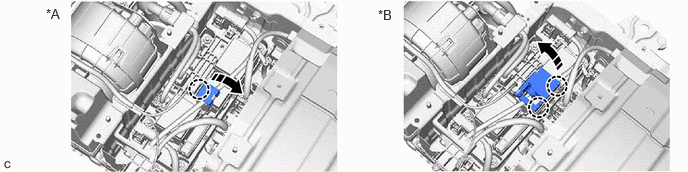

    2. Disengage the claw and open the wiring harness protector.
      GTY1089300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Type A *B Type B

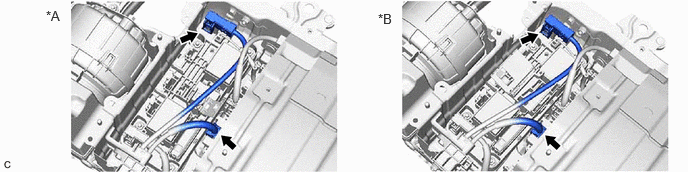

    3. Disconnect the HV battery junction block assembly connector.
      NOTE:

      Insulate the disconnected high-voltage connector with insulating tape.

      GTY1091042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Type A *B Type B
    4. Disconnect the hybrid battery terminal block connector.
      NOTE:

      Insulate the disconnected high-voltage connector with insulating tape.

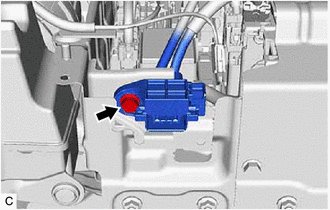

    5. Remove the bolt and electric vehicle battery plug assembly from the HV battery.
      GTY761478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
