Components [08/2020 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
| *1 | BATTERY SERVICE HOLE COVER | *2 | SERVICE PLUG GRIP |
Fig 2: Battery Plug (For Lithium-Ion Battery) Replacement Components With Torque Specifications (2 Of 4)
| *1 | CONNECTOR COVER ASSEMBLY | *2 | ENGINE ROOM MAIN WIRE |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |
Fig 3: Battery Plug (For Lithium-Ion Battery) Replacement Components With Torque Specifications (3 Of 4)
| *1 | REAR UNDER COVER | *2 | REAR UNDER SIDE COVER LH |
| *3 | REAR UNDER SIDE COVER RH | *4 | REAR SEAT CUSHION LEG SUB-ASSEMBLY |
| *5 | REAR SEAT CUSHION ASSEMBLY | *6 | REAR DOOR SCUFF PLATE LH |
| *7 | REAR DOOR SCUFF PLATE RH | *8 | REAR SEAT CUSHION LOCK HOOK |
| *9 | REAR CENTER SEAT OUTER BELT ASSEMBLY | *10 | REAR SEAT INNER BELT ASSEMBLY RH |
| *11 | WASHER | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part |

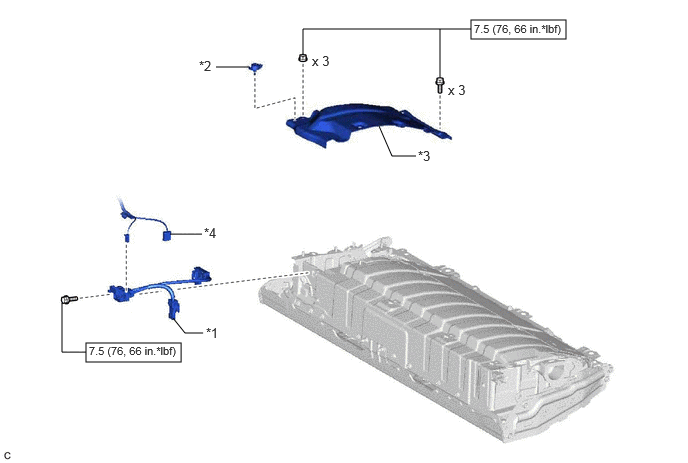

Fig 4: Battery Plug (For Lithium-Ion Battery) Replacement Components With Torque Specifications (4 Of 4)
| *1 | ELECTRIC VEHICLE BATTERY PLUG ASSEMBLY | *2 | BATTERY COVER LOCK STRIKER |
| *3 | NO. 1 HV BATTERY COVER PANEL RH | *4 | FLOOR WIRE |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |
