Removal [08/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus ES 300h, 2023 Lexus ES 300h, and 2022 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT BUMPER ASSEMBLY

    Refer to REMOVAL [08/2021 - 09/2022] , or refer to REMOVAL [09/2022 - ]

  2. REMOVE VEHICLE APPROACHING SPEAKER ASSEMBLY

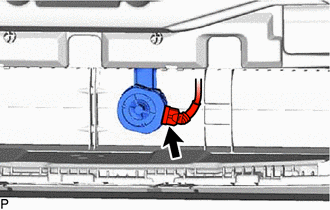

    1. Disconnect the connector.
      GTY953269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

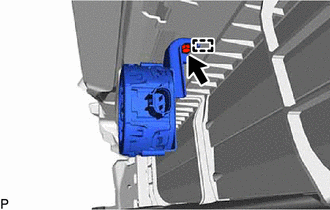

    2. Remove the bolt.
      GTY954039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the guide to remove the vehicle approaching speaker assembly.
